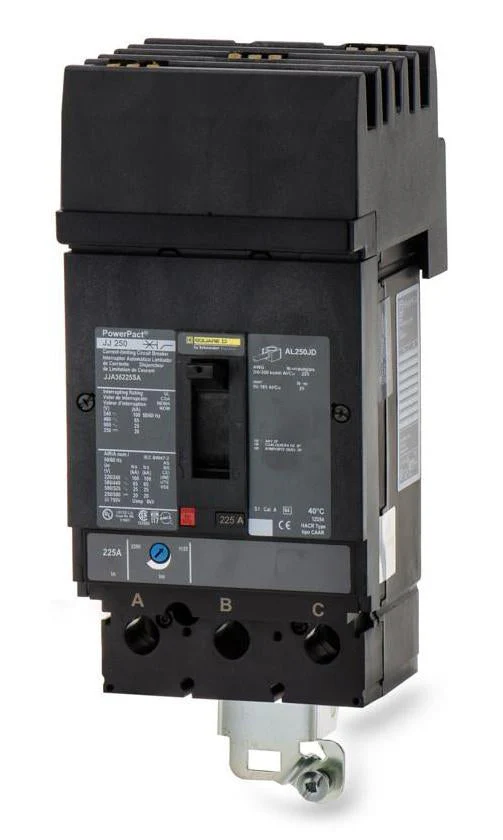

JJA36225SA - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - JJA36225SA - Square D Molded Case Circuit Breakers
-
Part Number:
JJA36225SA -
Manufacturer:
Schneider Electric / Square D -
Family:
Powerpact -
Pole:
3 -
Amp
225 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
JJA -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
7.52" x 4.09" x 3.39"
-
Weight:
5.29 lbs
Standards
Additional Details
-
Protection Type:
Short-Circuit / Overload -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
225 Amp -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code
J -
Electrical Connection:
I-Line connection line / Lugs load -
Magnetic Hold Current:
1125 Amp -
Continuous Current Rating
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Product Description - JJA36225SA - Square D Molded Case Circuit Breakers
Square D, Powerpact, type JJA, 3P, ABC phase connection, 3PH, 225A, 600V, 65kA@480V, UL listed, current limiting, i-line style plug-in, suitable for reverse fed applications, complete with non-interchangeable trip, 120V shunt trip, LI - Long-Time and Instantaneous trip functions, thermal magnetic, molded case circuit breakers
Documentation
Select Condition
From $449.40
Original: $1,497.99
-70%JJA36225SA - Square D - Molded Case Circuit Breakerā
$1,497.99
$449.40Product Information
