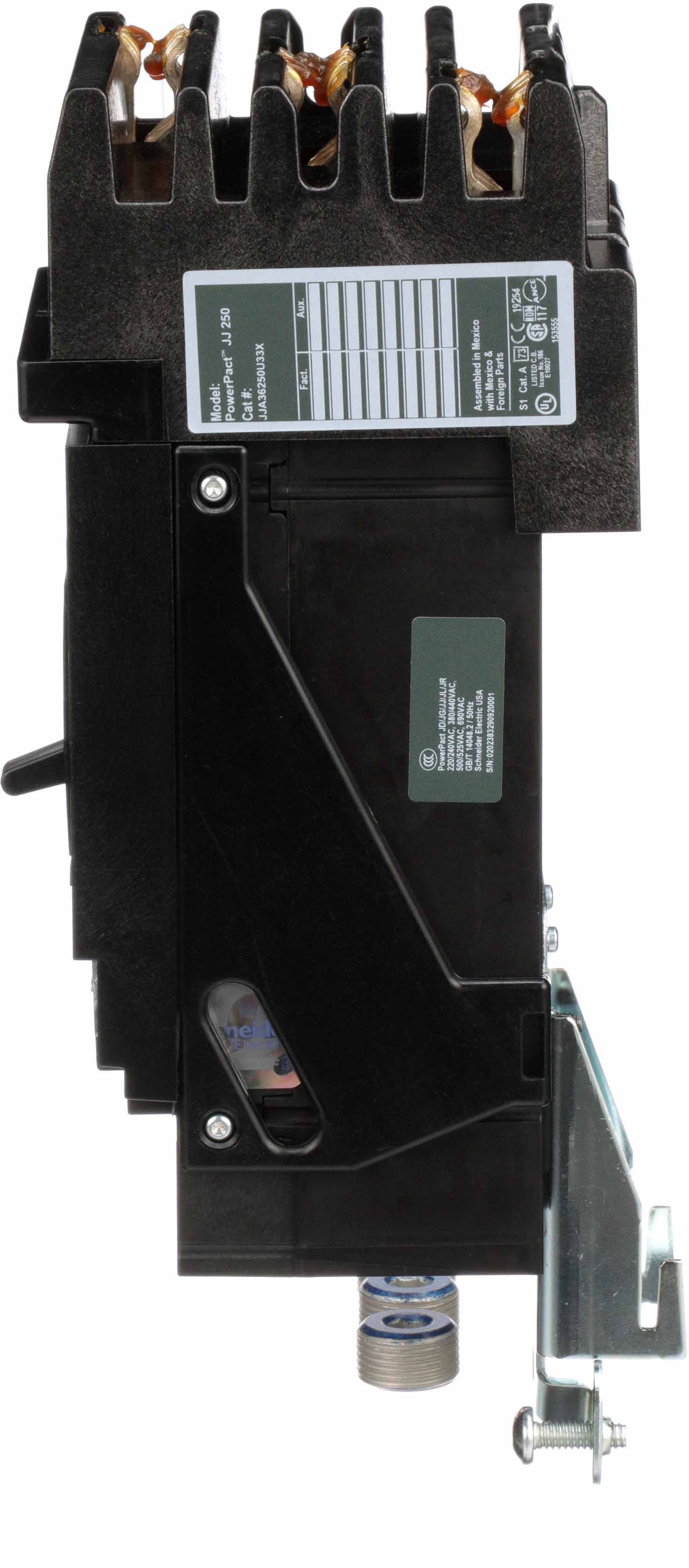

JJA36250U31X - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - JJA36250U31X - Square D Powerpact Circuit Breaker
-
Part Number:
JJA36250U31X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
250 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
JJA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
11.48" x 4.48" x 5.87" -
Weight:
5.29 lbs
Standards
Additional Details
-
Protection Type:
Overload protection / Short-circuit protection -
Frame Type:
J-Frame -
Trip Unit Technology:
Electronic, standard, MicroLogic 3.2, LI -
Line Rated Current:
250 Amp -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code:
J -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Product Description - JJA36250U31X - Square D Powerpact Circuit Breaker
Square D, Powerpact, type JJA, 3P, ABC phase connection, 3PH, 250A, 600V, 65kA@480V, current limiting, i-line style plug-in, UL listed, suitable for reverse connection, can be used for 2P applications, complete with micrologic standard 3.2 non-interchangeable trip.
Documentation
Â
Select Condition
From $594.60
Original: $1,981.99
-70%JJA36250U31X - Square D - Molded Case Circuit Breaker—
$1,981.99
$594.60Product Information
