JJL36250U31X - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - JJL36250U31X - Square D Powerpact Circuit Breaker
-
Part Number:
JJL36250U31X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
250 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
JJL -
Functions:
I - Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V

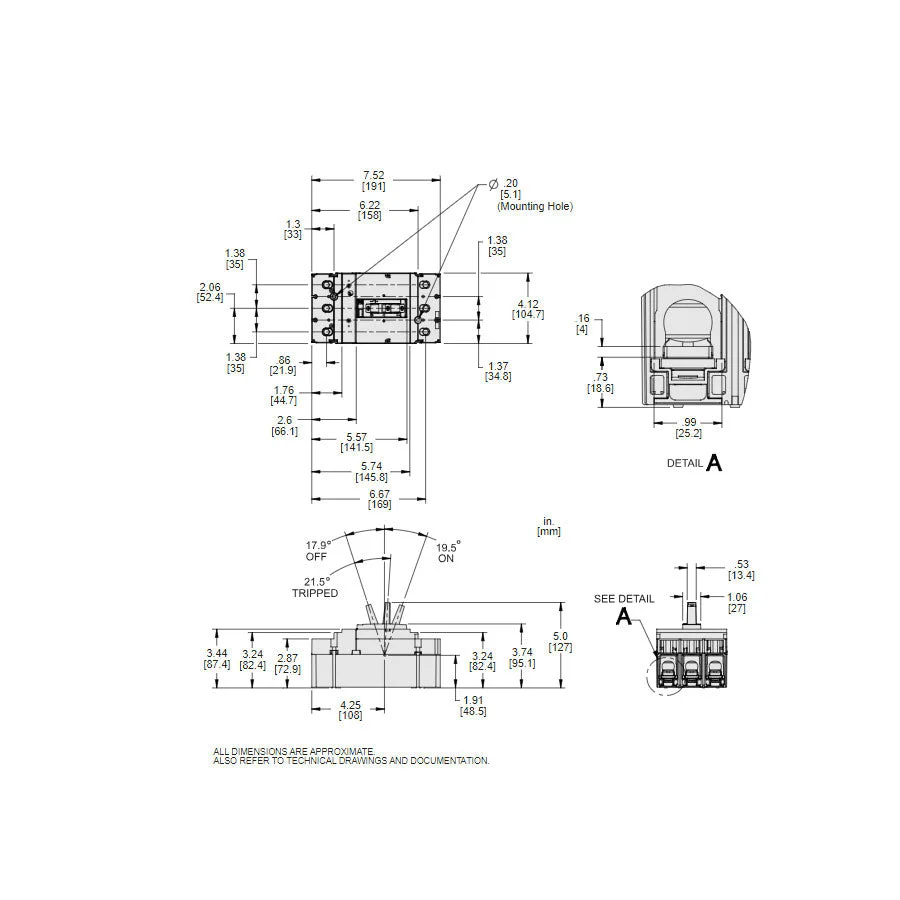

Dimensions
-
Dimensions (HxWxD):
7.52" x 4.09" x 3.39" -
Weight:
5.29 lbs
Standards
Additional Details
-
Protection Type:
Overload protection / Short-circuit protection -
Frame Type:
J-Frame -
Trip Unit Technology:
Electronic, standard, MicroLogic 3.2, LI -
Line Rated Current:
250 Amp -
Mounting Mode:
Unit-Mount Lug
-
Breaking Capacity Code:
J -
Electrical Connection:
Lug line / Lugs load -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Product Description - JJL36250U31X - Square D Powerpact Circuit Breaker
Schneider Electric,Square D, Powerpact, type JJL, 3P, 3PH, 250A, 600V, 65kA@480V, current limiting, feed-thru, UL listed, suitable for reverse fed applications, can be used for 2P applications, complete with micrologic standard non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, solid state.
Documentation
Â
Original: $2,203.99
-70%$2,203.99
$661.20Product Information
