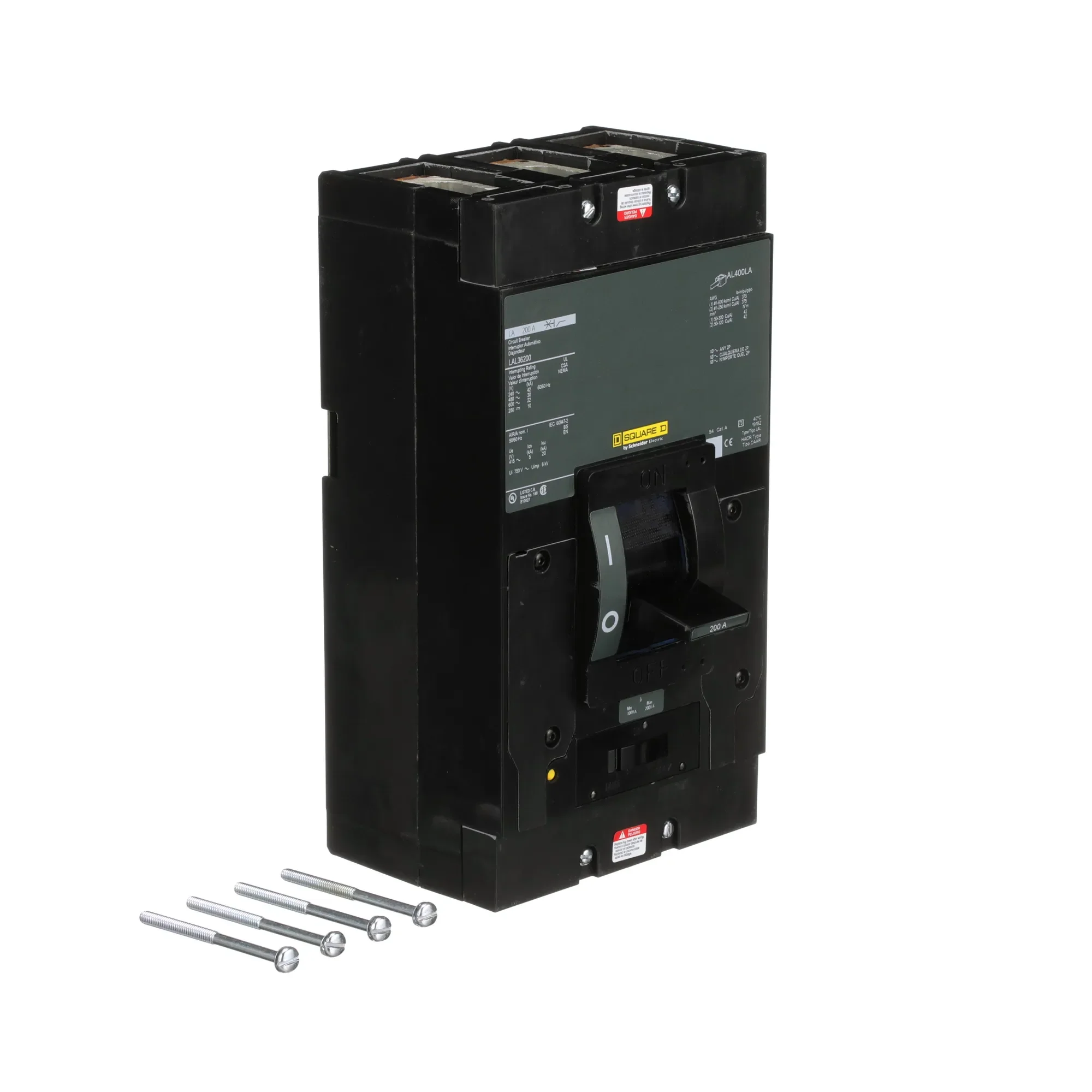

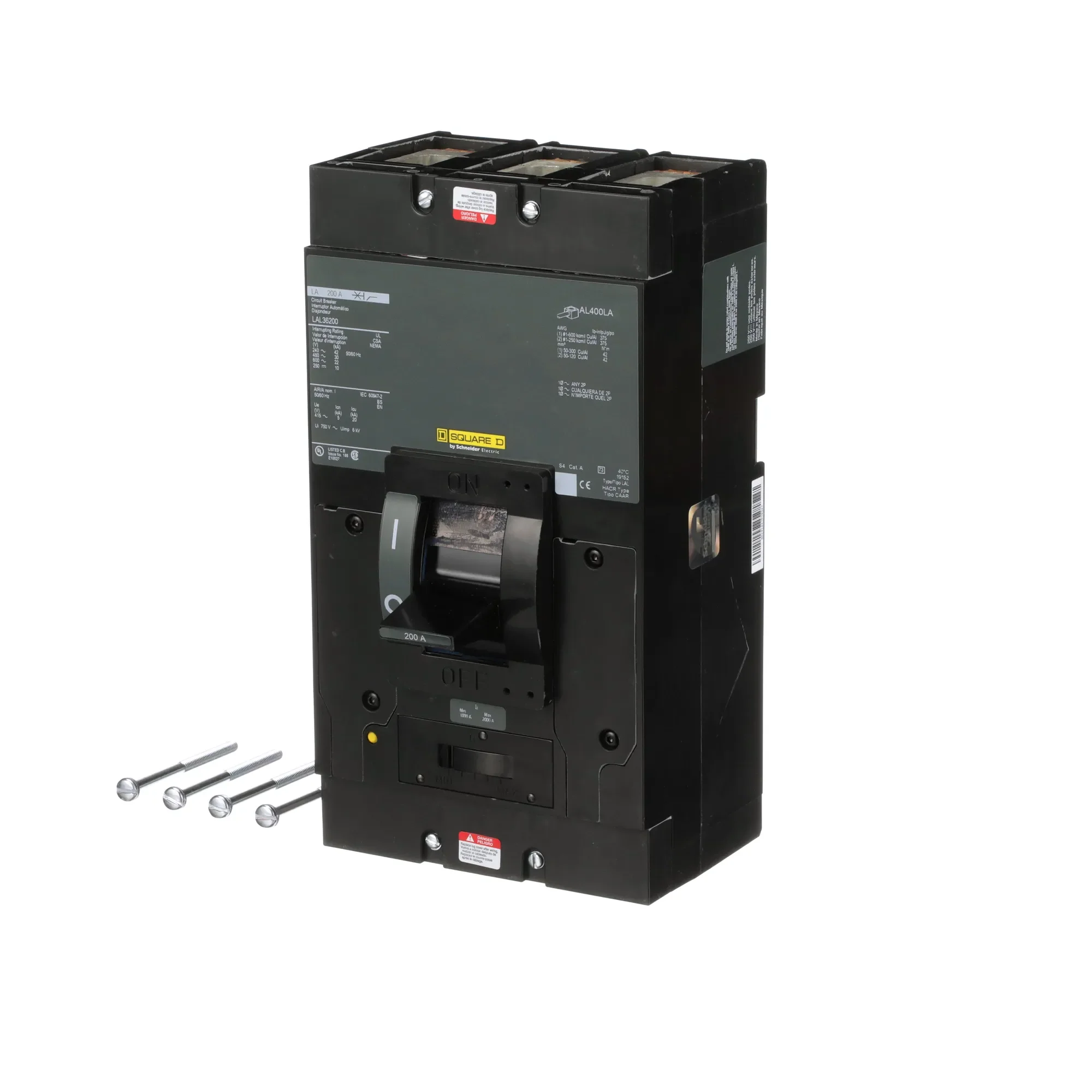

LAL36200 - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - LAL36200 - Square D Powerpact Circuit Breaker
-
Part Number:
LAL36200 -
Manufacturer:
-
Family:
LAL Series -
Pole:
3 -
Amp
200 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
LAL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
30kA@480V
Dimensions
-
Dimensions (HxWxD):
11" x 6" x 5.84"
Standards
Additional Details
-
Frame Type:
J-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
200 Amp -
Mounting Mode:
Unit Mount
-
Electrical Connection:
Lugs line / Lugs load -
Magnetic Hold Current:
1000 Amp
Product Description - LAL36200 - Square D Powerpact Circuit Breaker
Square D, LAL Series, type LAL, 3P, 3PH, 200A, 600V, 30kA@480V, standard interrupting capacity, feed-thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic molded case circuit breakers.
Documentation
