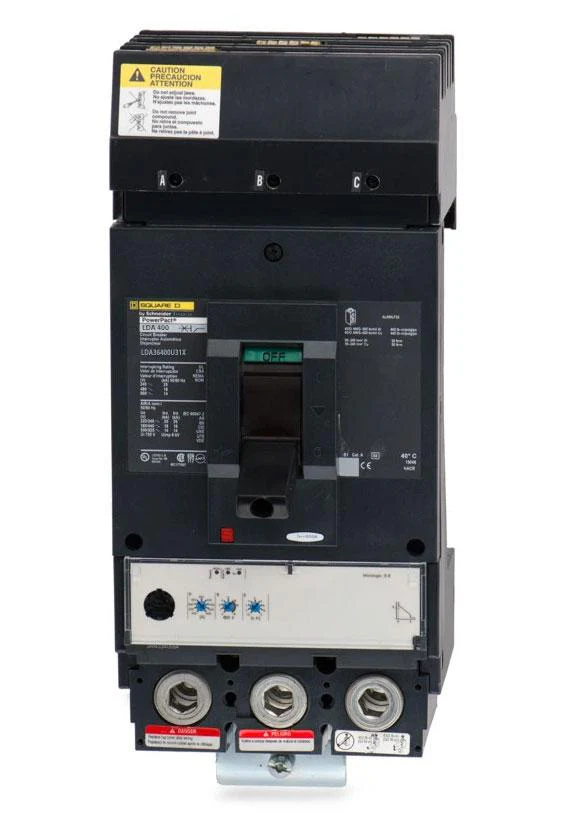

LDA36400U31X - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - LDA36400U31X - Square D Molded Case Circuit Breakers
-
Part Number:
LDA36400U31X -
Manufacturer:
Schneider Electric / Square D -
Family:
Powerpact -
Pole:
3 -
Amp
400 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
LDA -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
18kA@480V
Dimensions
-
Dimensions (HxWxD):
13.39" x 5.51" x 4.33"
-
Weight:
13.67 lbs
Standards
Additional Details
-
Trip Unit Technology:
Electronic, standard, MicroLogic 3.3, LI -
Line Rated Current:
400 Amp -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code
D -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 3/0...500 kcmil aluminium/copper
Product Description - LDA36400U31X - Square D Molded Case Circuit Breakers
Schneider Electric / Square D, Powerpact, type LDA, 3P, 3PH, 400A, 600V, 18kA@480V, UL listed, standard interrupting capacity, i-line style plug-in, can used for 2P applications, complete with non-interchangeable micrologic standard 3.3 trip, LI - Long-Time and Instantaneous trip functions, solid state electronic, molded case circuit breakers
Documentation
Original: $1,809.99
-70%$1,809.99
$543.00Product Information
