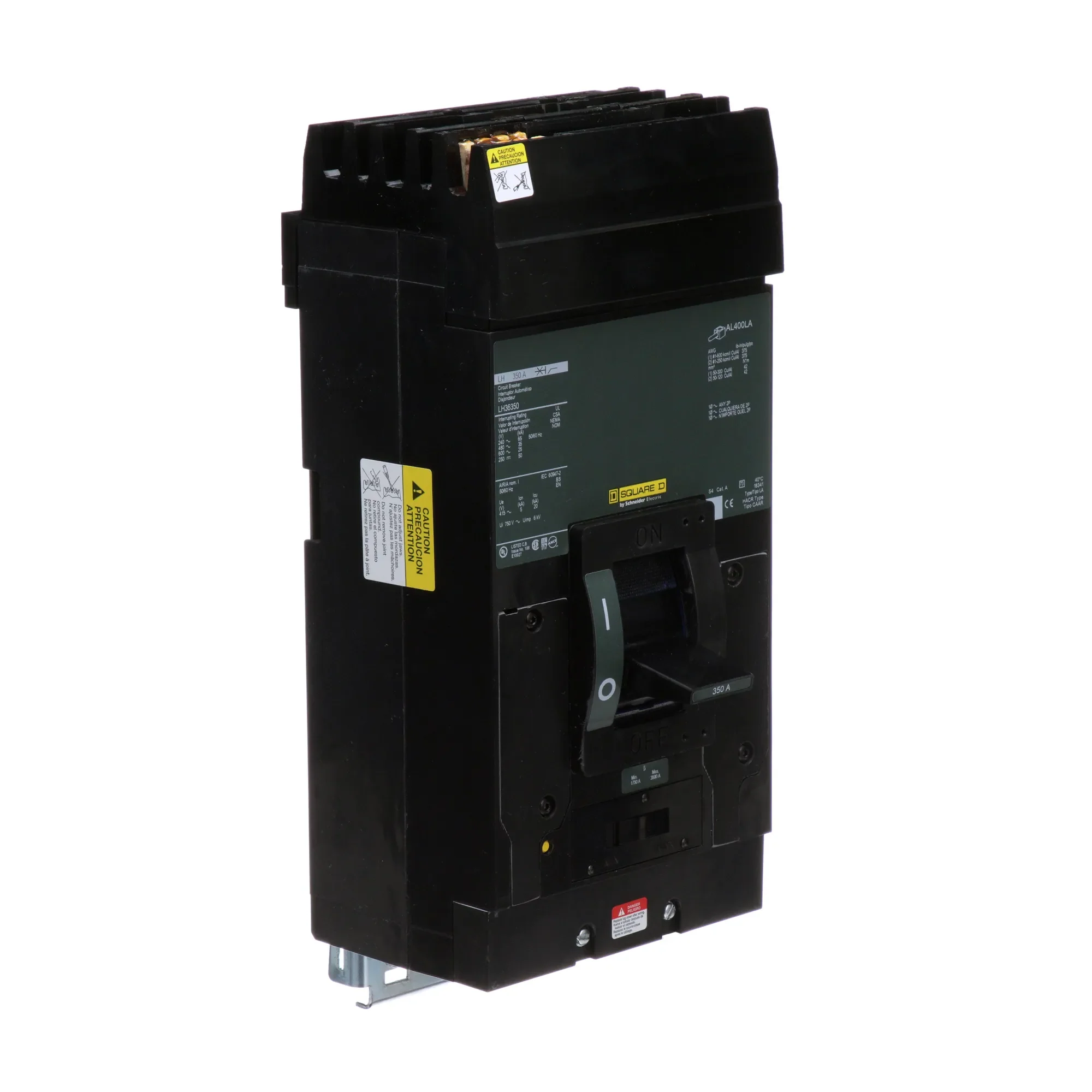

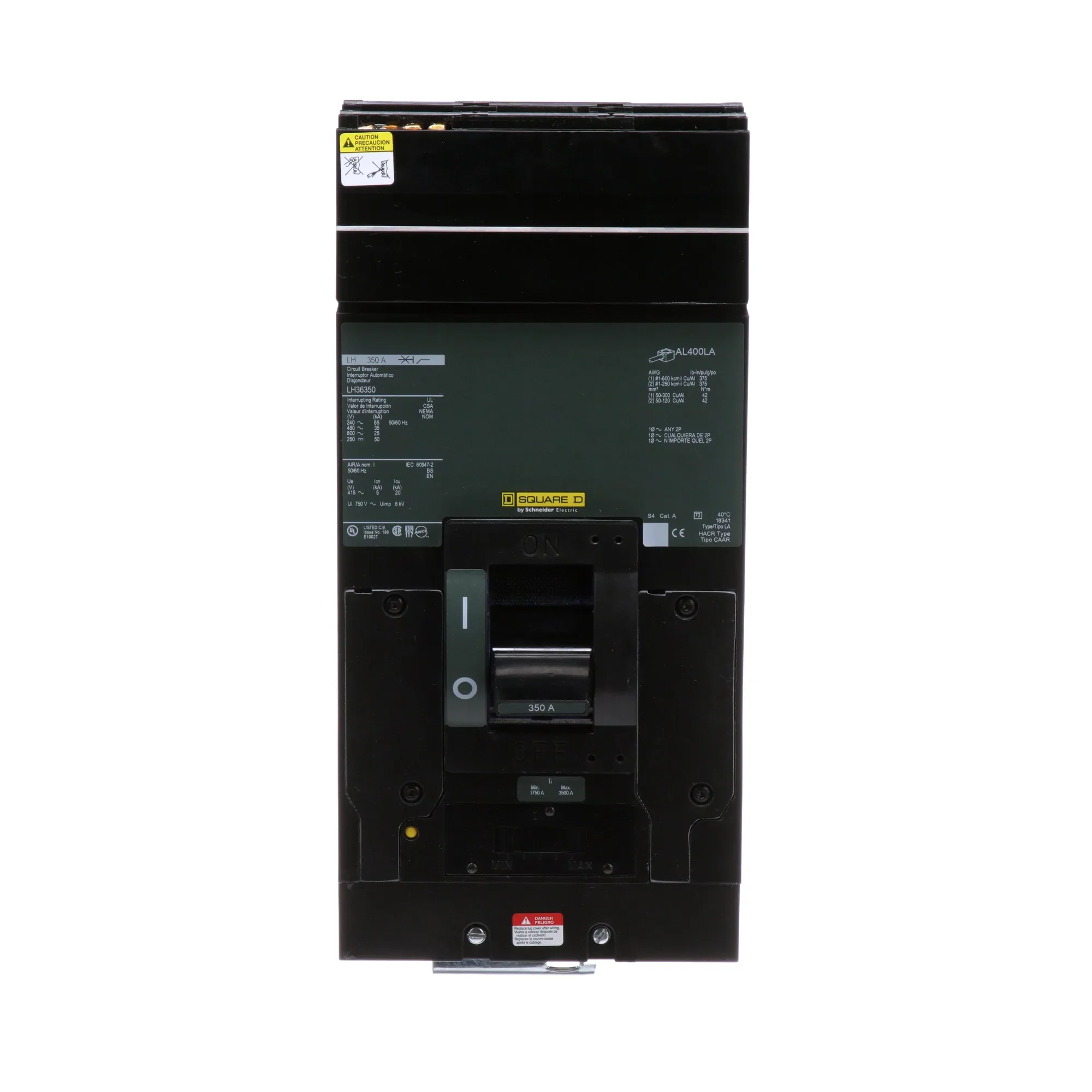

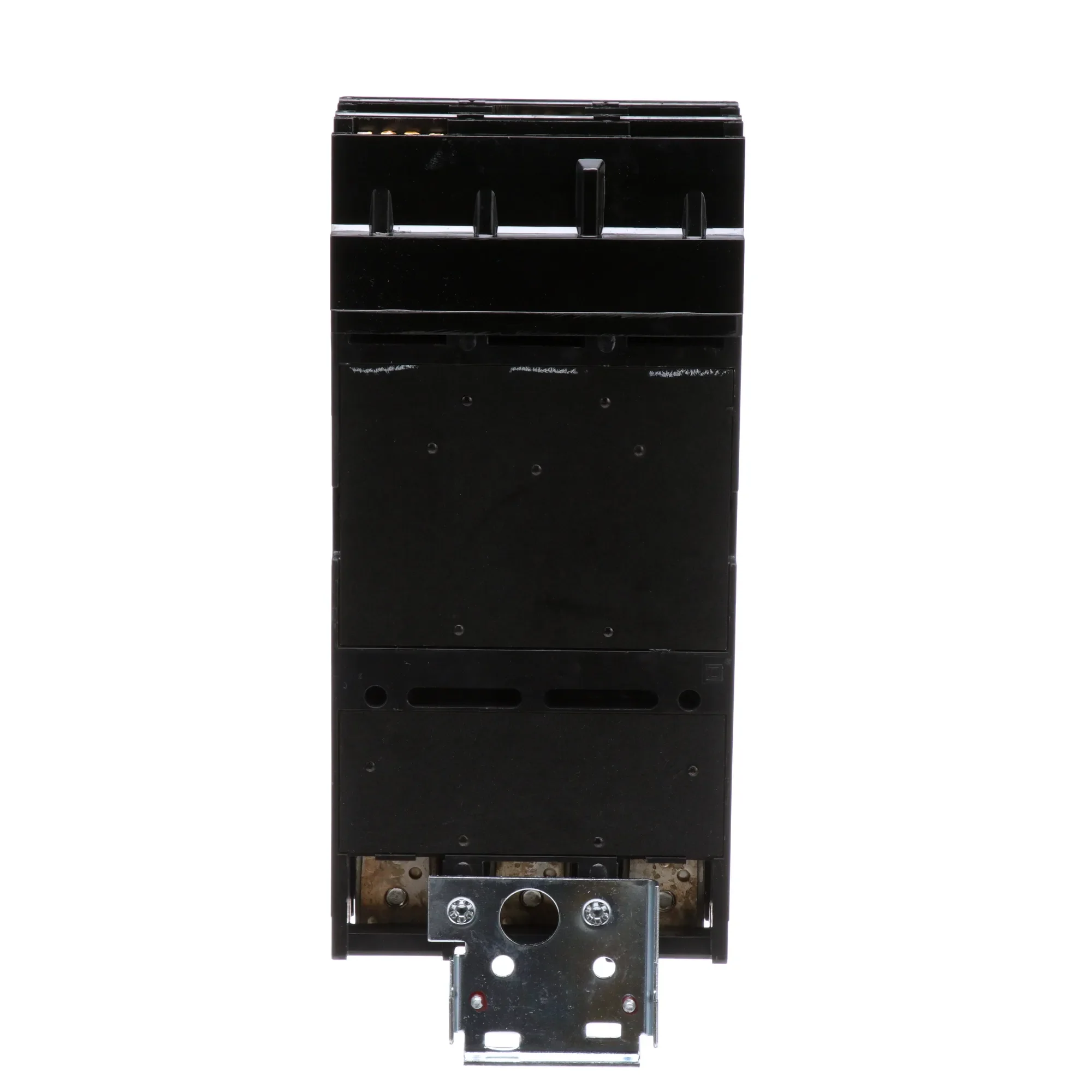

LH36350 - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - LH36350 - Square D Powerpact Circuit Breaker
-
Part Number:
LH36350 -
Manufacturer:
-
Family:
I-Line -
Pole:
3 -
Amp
350 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
LH -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
Frame Type:
L Frame -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
12.5" x 6.0" x 4.0"
Standards
Additional Details
-
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
350 Amp -
Mounting Mode:
I-Line
-
Breaking Capacity Code:
H -
Magnetic Hold Current:
1750 A -
Electrical Connection:
I-Line connection line / Lugs load
Product Description - LH36350 - Square D Powerpact Circuit Breaker
Square D, I-Line, type LH, 3P, ABC phase circuit configuration, 3PH, 350A, 600V, 35kA@480V, high interrupting capacity, i-line style plug-in, complete with LI - Long-Time and Instantaneous trip functions, thermal magnetic molded case circuit breakers.
