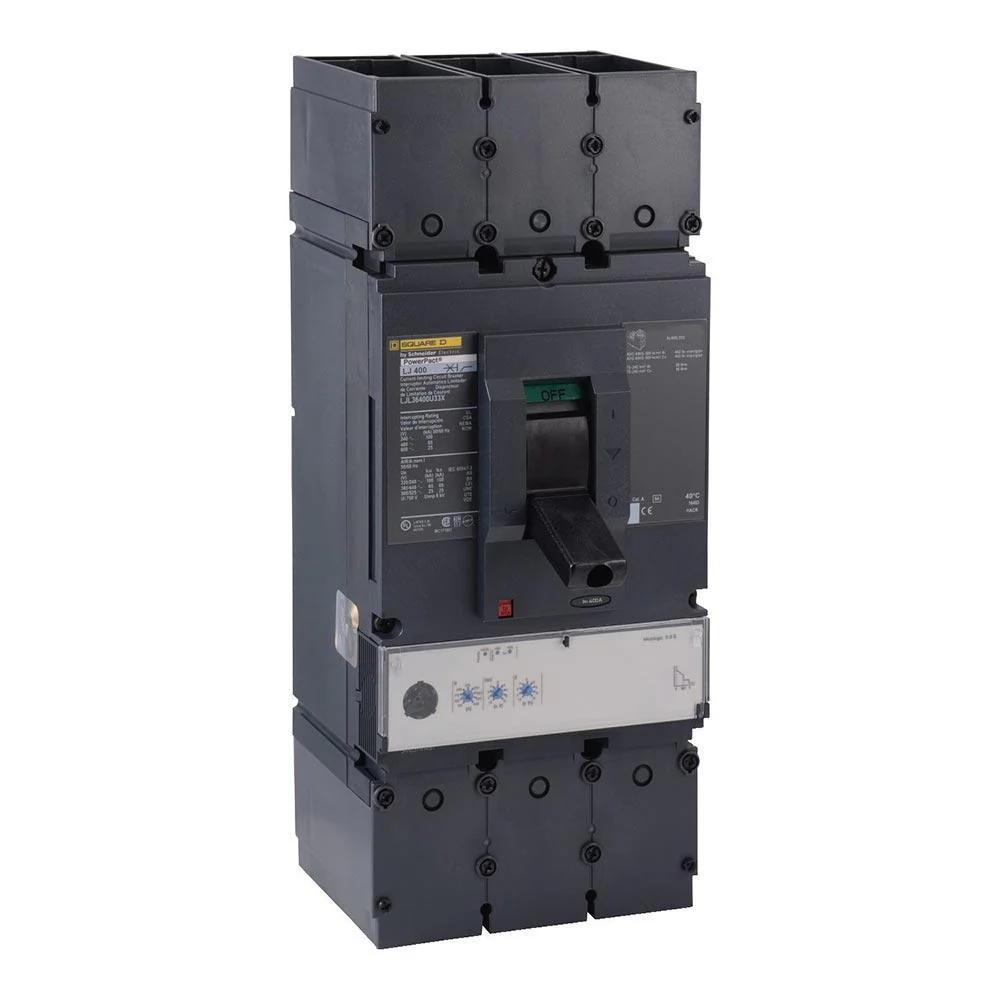

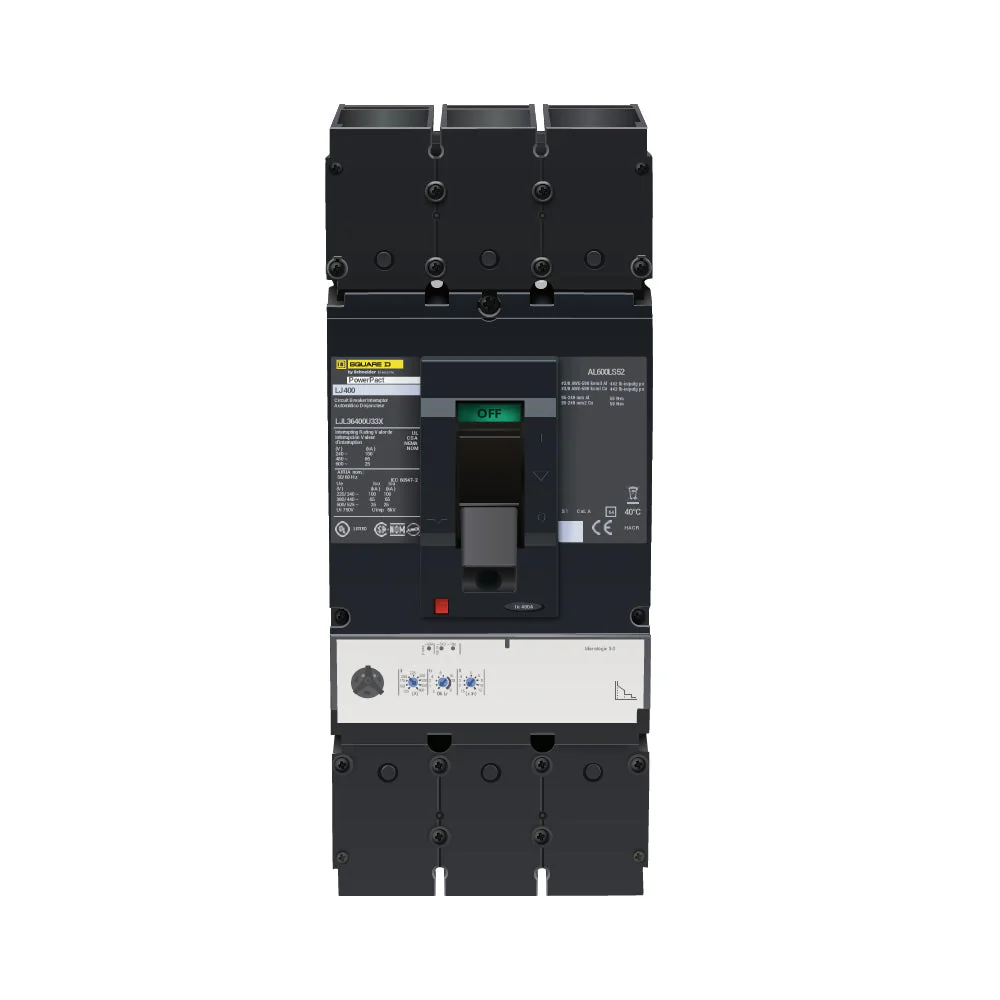

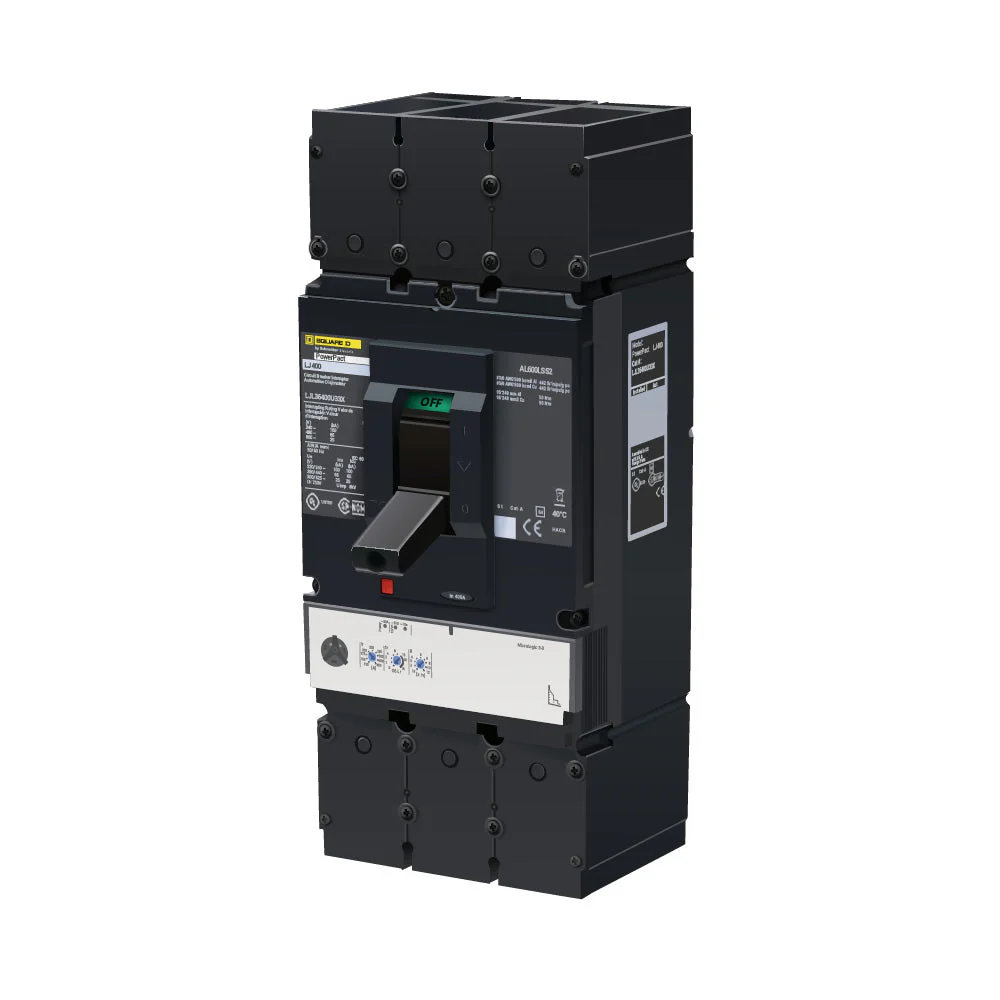

LJL36400U33X - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - LJL36400U33X - Square D Powerpact Circuit Breaker
-
Part Number:
LJL36400U33X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
400 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
LJL -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
Frame Type:
L Frame -
AIC Ratings:
65kA@480V

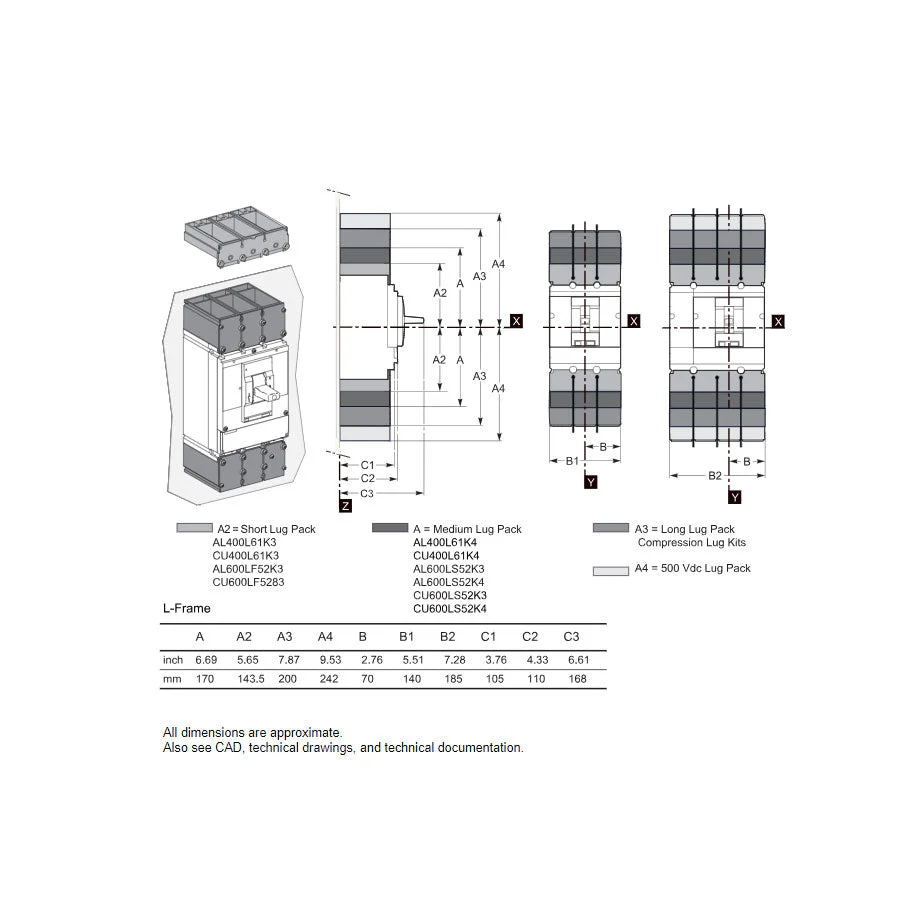

Dimensions
-
Dimensions (HxWxD):
11.3" x 5.5" x 6.61"
Standards
Additional Details
-
Trip Unit Technology:
Electronic, standard, MicroLogic 3.3, LI -
Line Rated Current:
400 Amp -
Mounting Mode:
i-Line Bracket
-
Breaking Capacity Code:
J -
Electrical Connection:
I-Line connection line / Lugs load
Product Description - LJL36400U33X - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type LJL, 3P, 3PH, 400A, 600V, 65kA@480V, UL listed, current limiting, feed-thru, can used for 2P applications, complete with non-interchangeable micrologic standard 3.3S trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, solid state electronic, molded case circuit breakers.
