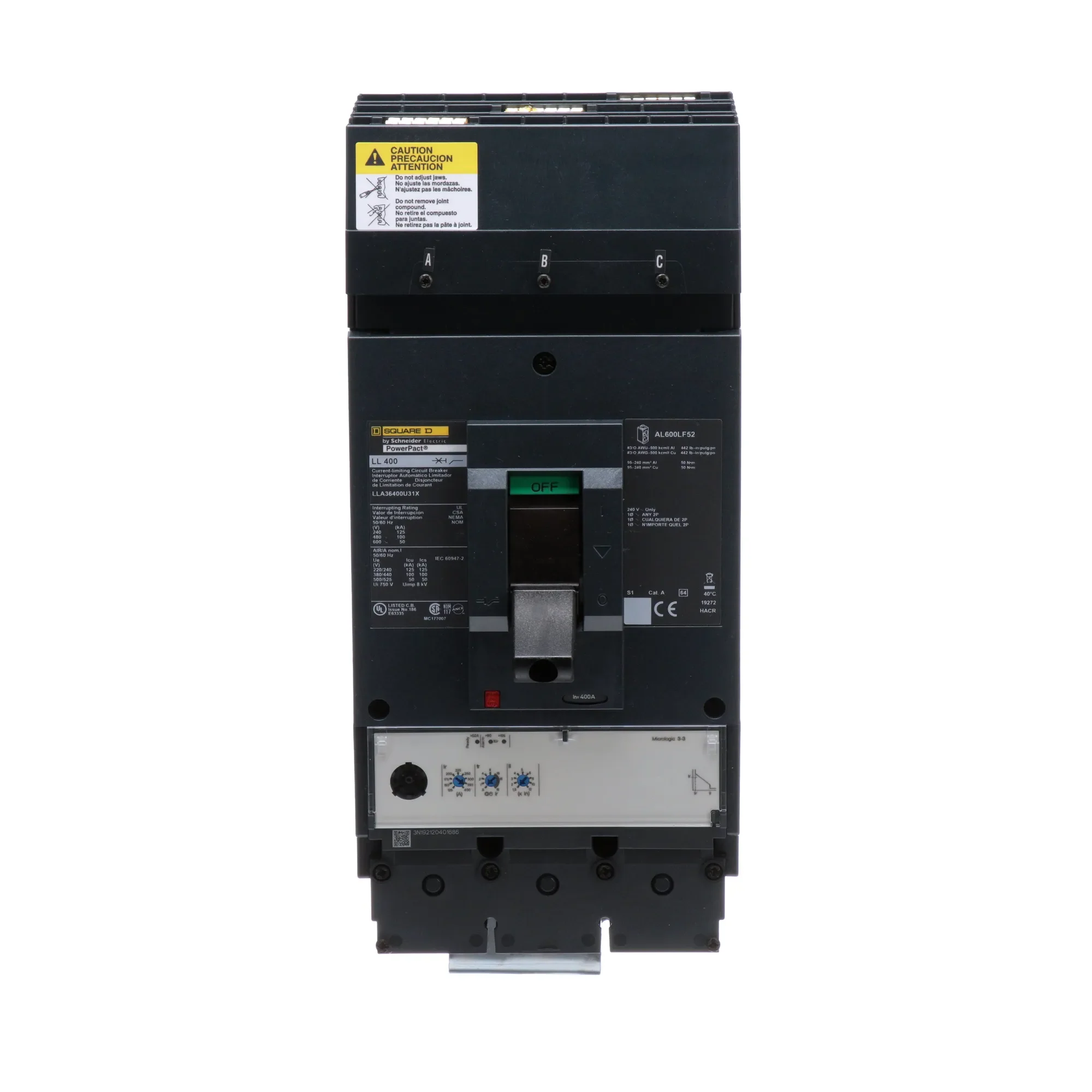

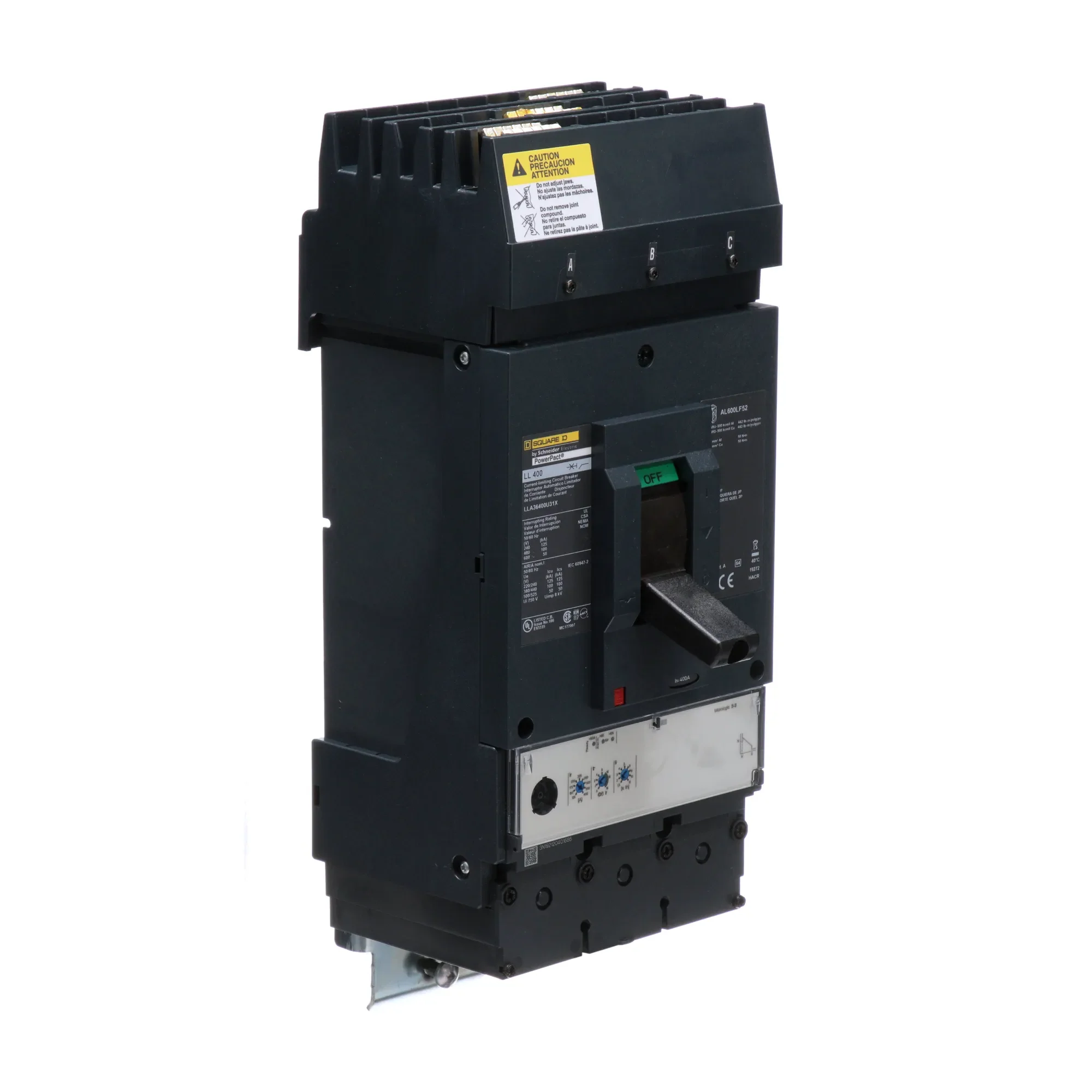

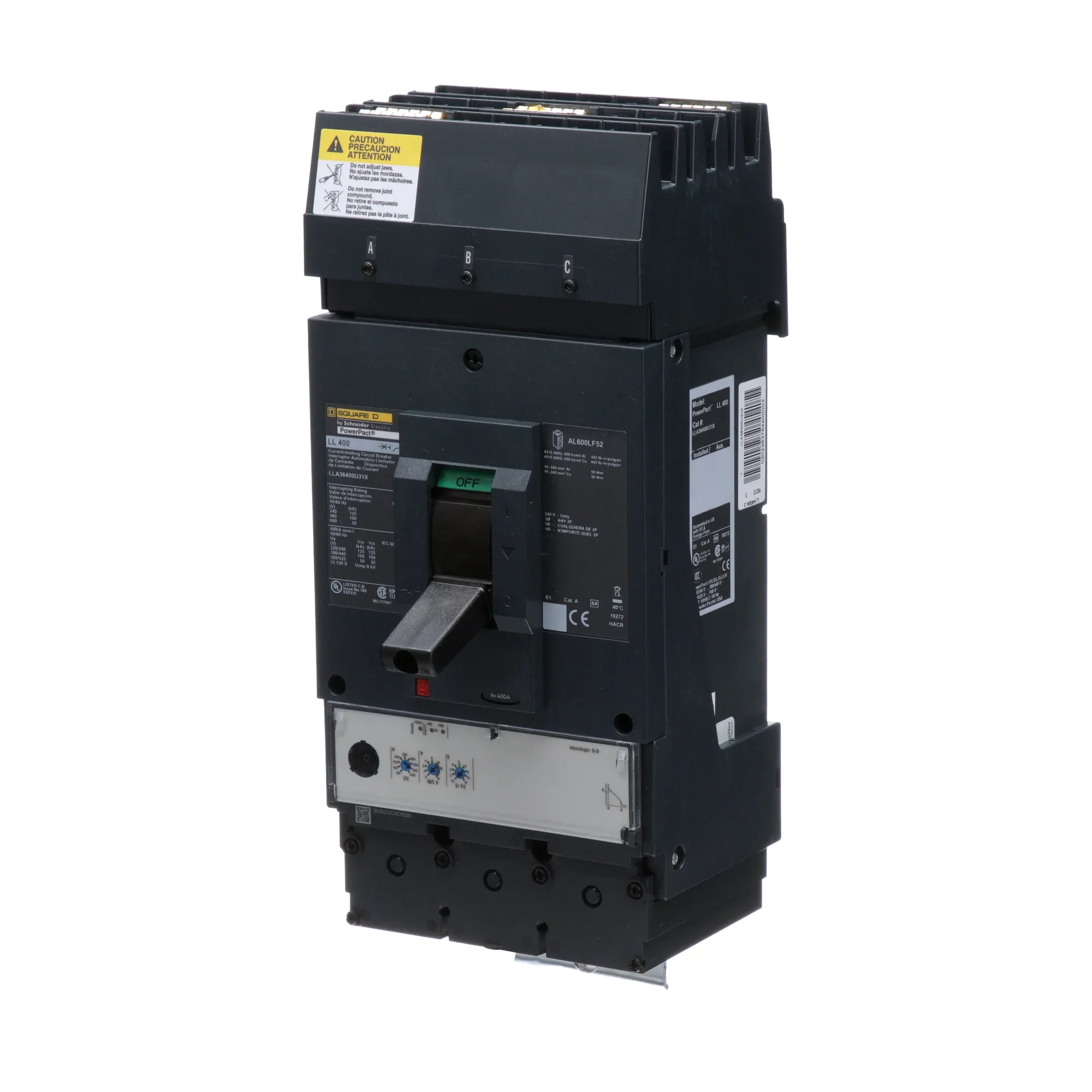

LLA36400U31X - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - LLA36400U31X - Square D Powerpact Circuit Breaker
-
Part Number:
LLA36400U31X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
400 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
LLA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
100kA@480V
Dimensions
-

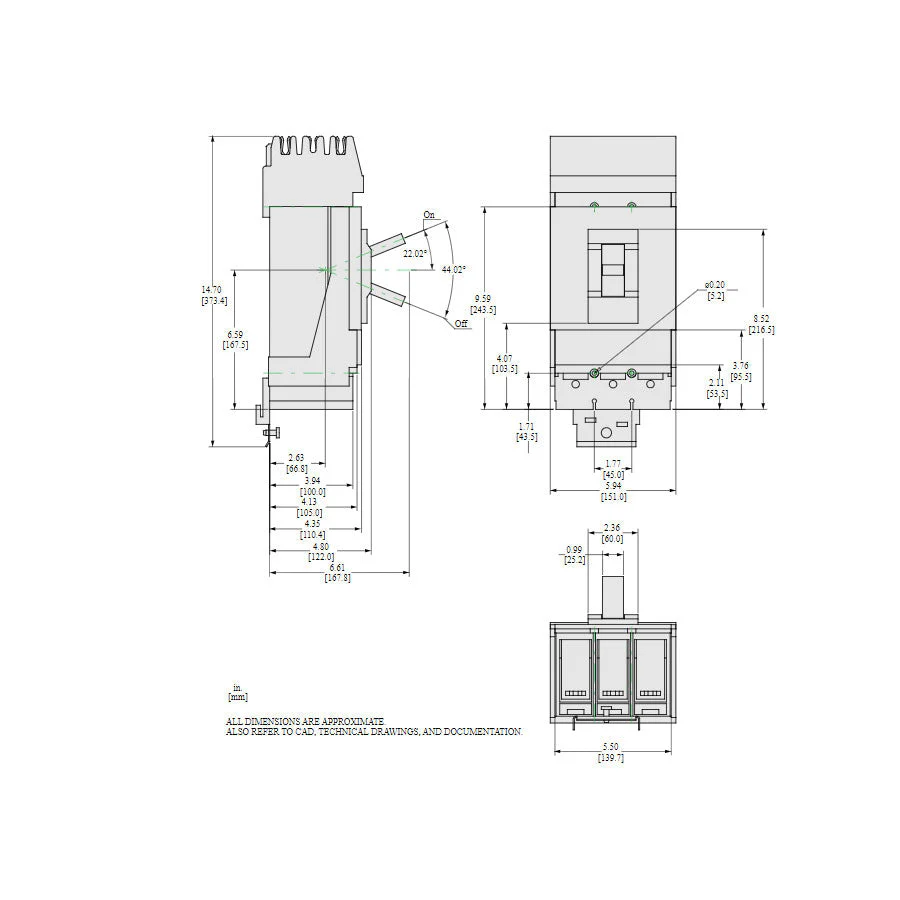

Dimensions (HxWxD):
14.7" x 5.94" x 6.61" -
Weight:
13.67 lbs
Standards
Additional Details
-
Frame Type:
L-Frame -
Trip Unit Technology:
Electronic, standard, Micrologic 3.3 S, LSI -
Line Rated Current:
400 Amp -
Mounting Mode:

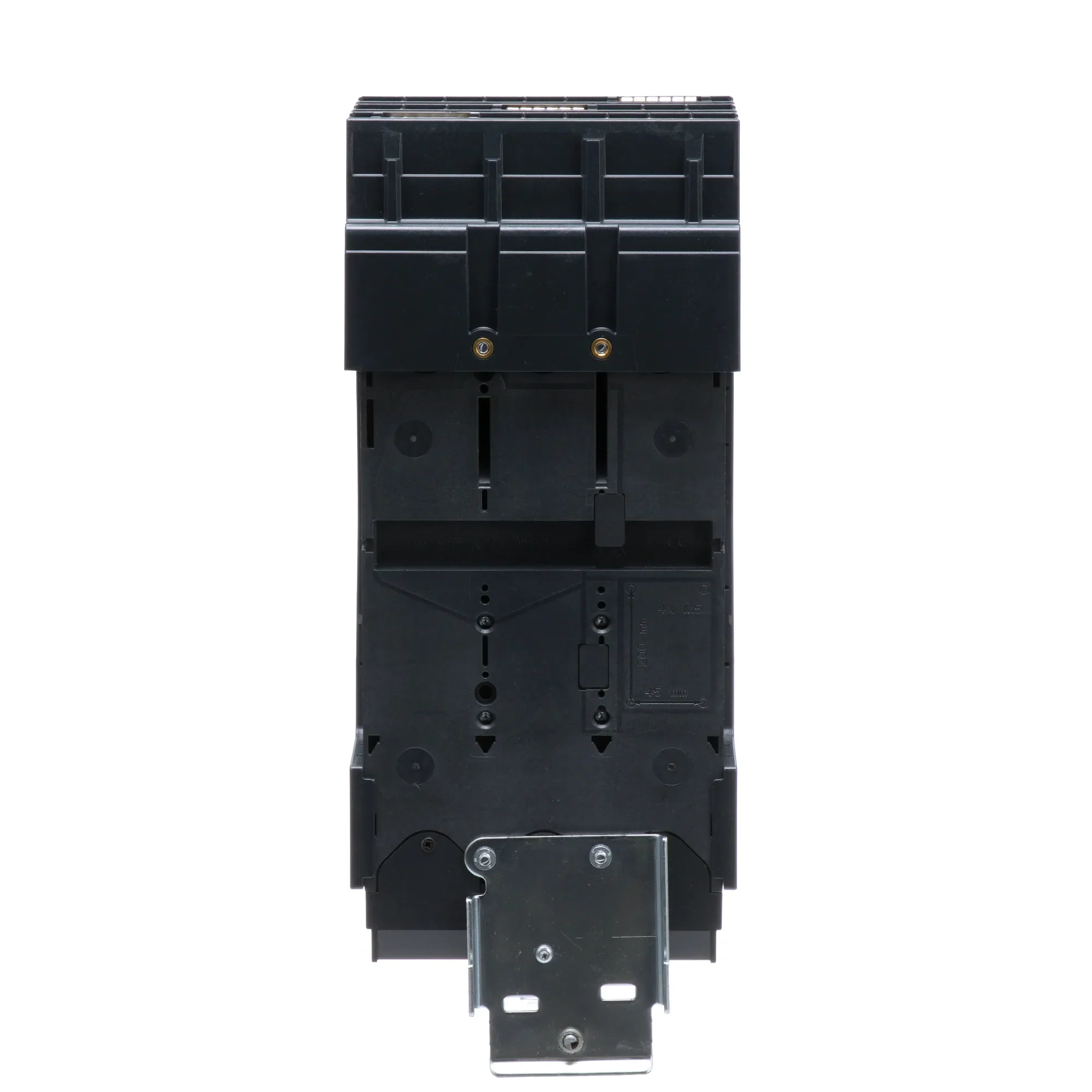

I-Line bracket
-
Breaking Capacity Code:
L -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 3/0...500 kcmil aluminium/copper
Product Description - LLA36400U31X - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type LLA, 3P, 3PH, 400A, 600V, 100kA@480V, UL listed, standard interrupting capacity, i-line style plug-in, can used for 2P applications, complete with non-interchangeable micrologic standard 3.3 trip, LI - Long-Time and Instantaneous trip functions, solid state electronic, molded case circuit breakers.
Documentation
Original: $4,199.99
-70%$4,199.99
$1,260.00Product Information
