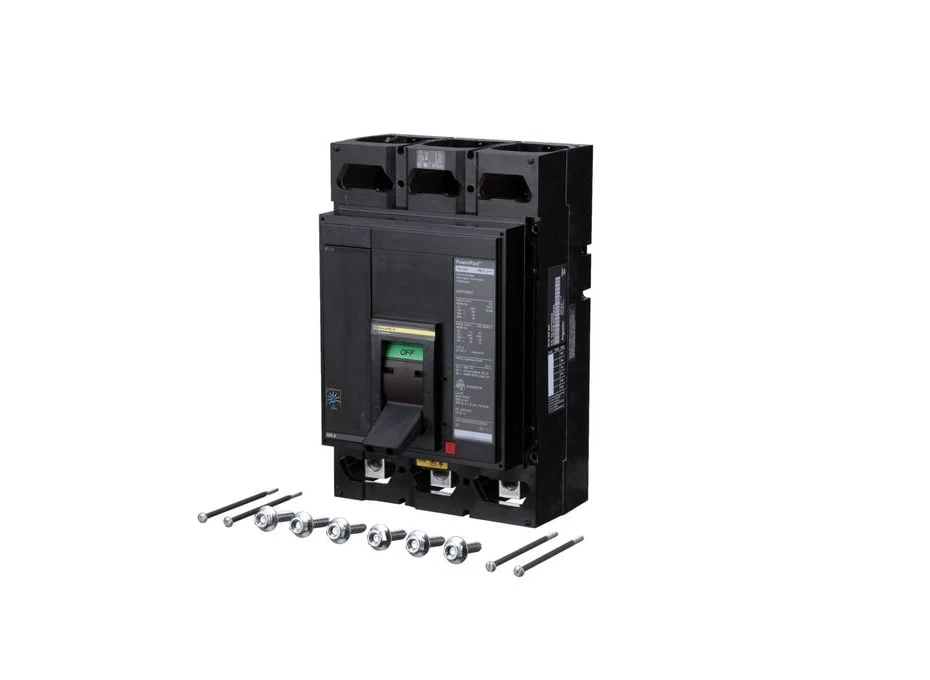

MGP36800 - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - MGP36800 - Square D Powerpact Circuit Breaker
-
Part Number:
MGP36800 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
800 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt On -
Type:
MGP -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
12.86" x 8.27" x 8.05" -
Weight:
29 lbs
Standards
Additional Details
-
Frame Type:
M-Frame -
Trip Unit Technology:
Electronic, basic, ET 1.0, -
Line Rated Current:
800 Amp -
Mounting Mode:
Unit Mount Lug
-
Breaking Capacity Code:
G -
Electrical Connection:
Lugs line / Lugs load -
Continuous Current Rating:
80% -
Control Type:
Operating Handle -
AWG Gauge:
3 x AWG 3/0...3 x 500 kcmil aluminium/copper
Product Description - MGP36800 - Square D Powerpact Circuit Breaker
Schneider Electric,Square D, Powerpact, type MGP, 3P, 3PH, 800A, 600V, 35kA@480V, UL listed, high interrupting capacity, bolt-on, load side lugs, solid state electronic.
Documentation
Select Condition
From $1,075.80
Original: $3,585.99
-70%MGP36800 - Square D - Molded Case Circuit Breakerā
$3,585.99
$1,075.80Product Information
