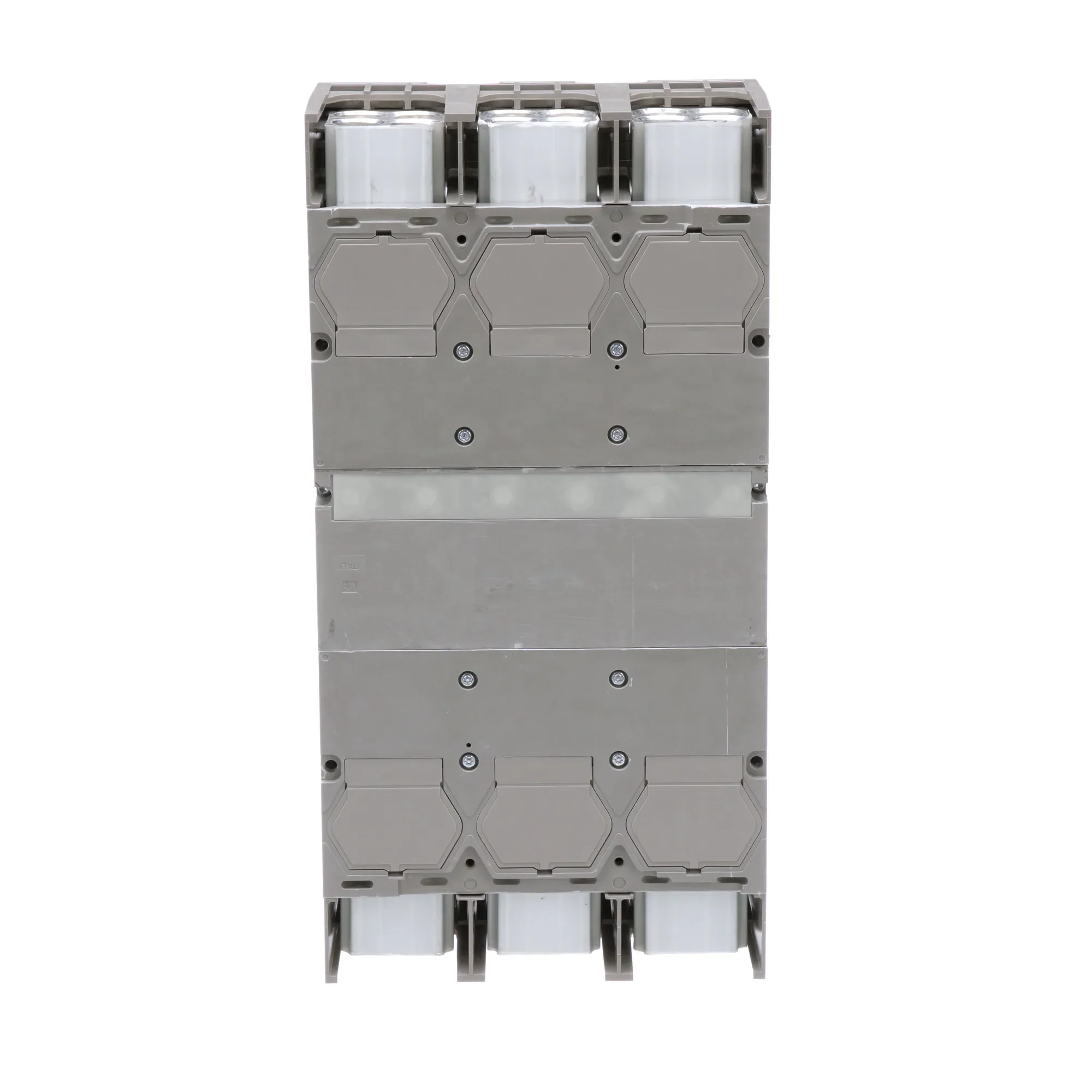

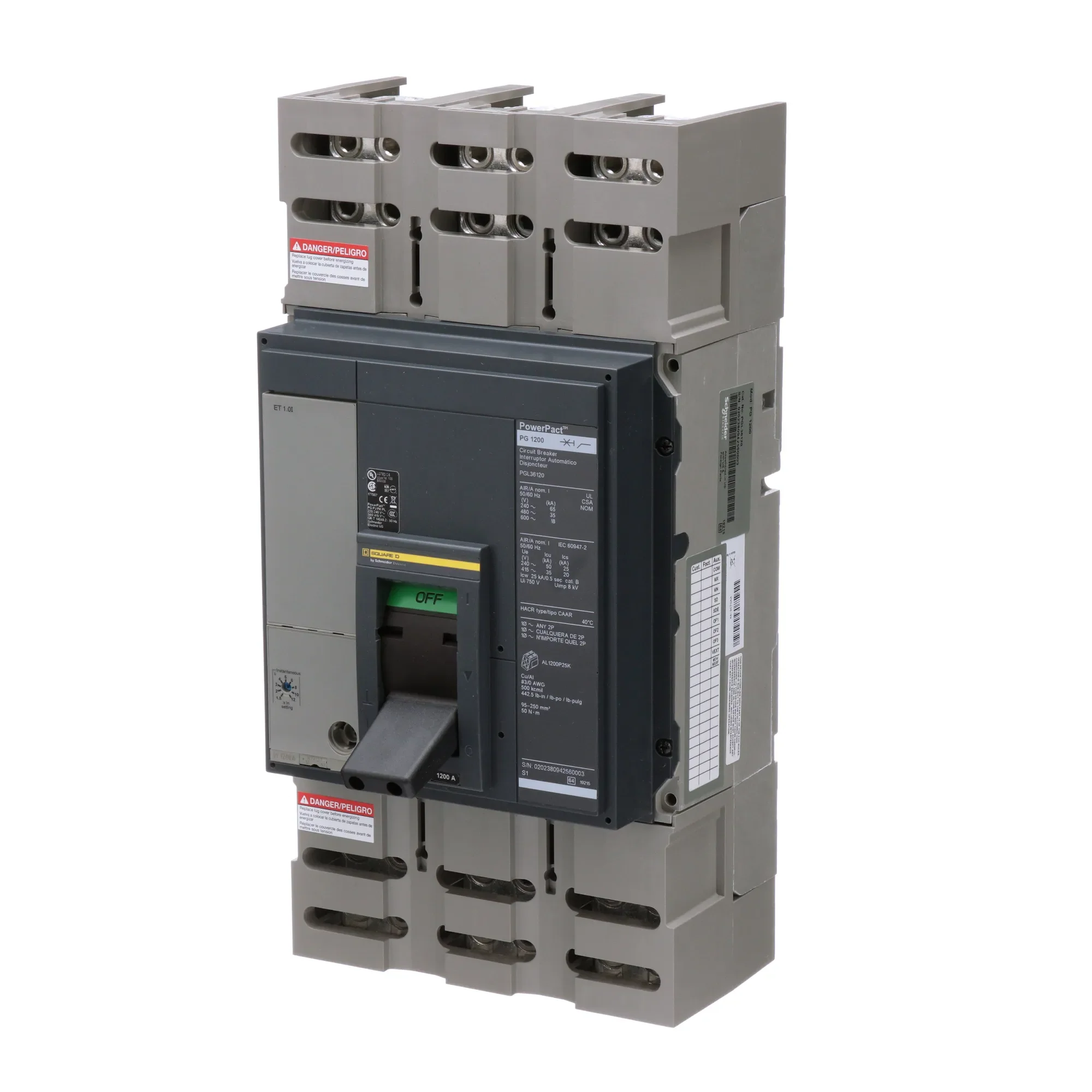

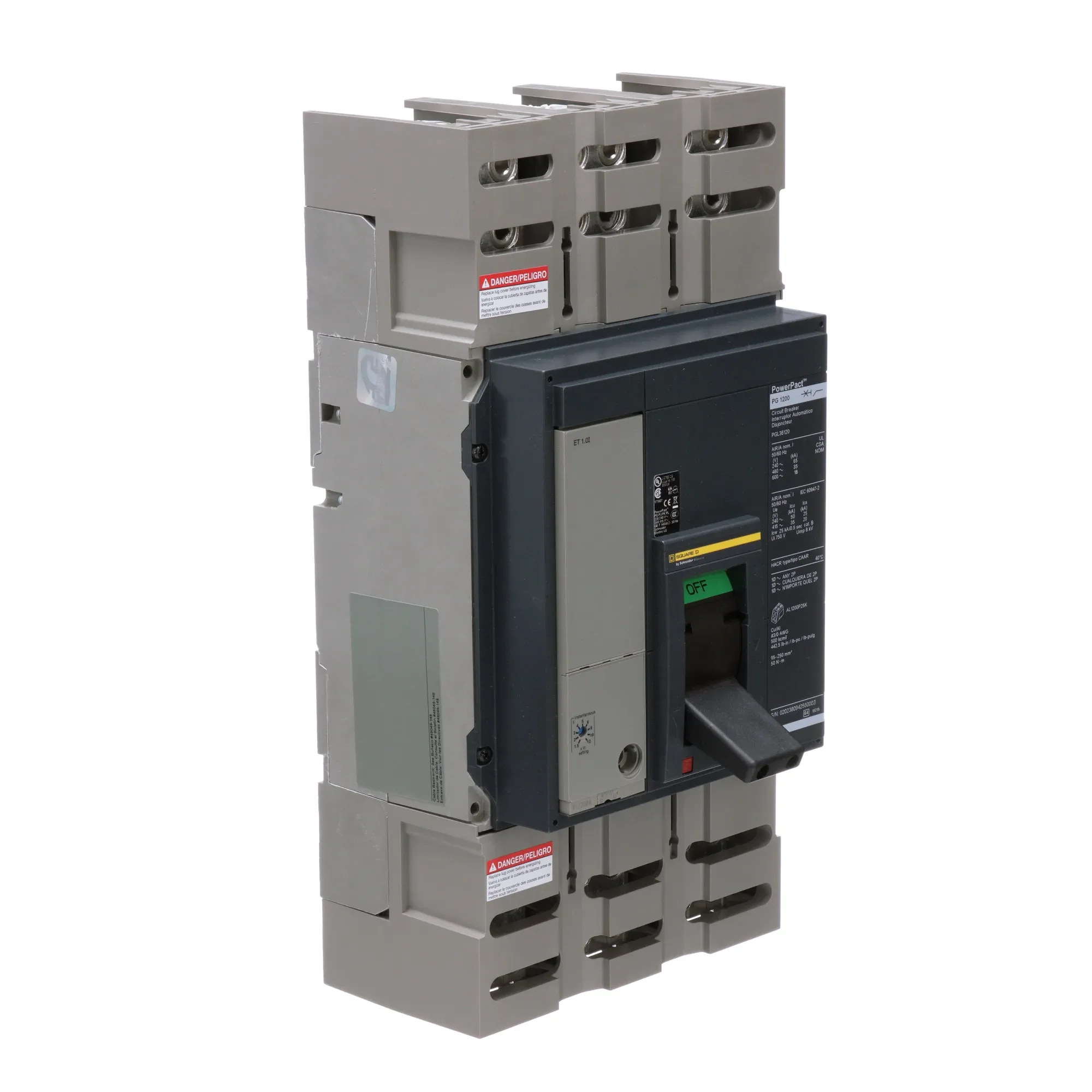

PGL36120 - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - PGL36120 - Square D Powerpact Circuit Breaker
-
Part Number:
PGL36120 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
1200 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
PGL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
16.16" x 8.05" x 8.27" -
Weight:
32 lbs
Standards
Additional Details
-
Frame Type:
P-Frame -
Trip Unit Technology:
Electronic, basic, ET 1.0I, I -
Line Rated Current:
1200 Amp
-
Breaking Capacity Code:
G -
Electrical Connection:
Lugs line / Lugs load -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
4 x AWG 3/0...500 kcmil aluminium/copper
Product Description - PGL36120 - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type PGL, 3P, 3PH, 1200A, 600V, 35kA@480V, UL listed, standard interrupting capacity, feed-thru, complete with basic non-interchangeable ET 1.0I trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, solid state electronic, molded case circuit breakers.
