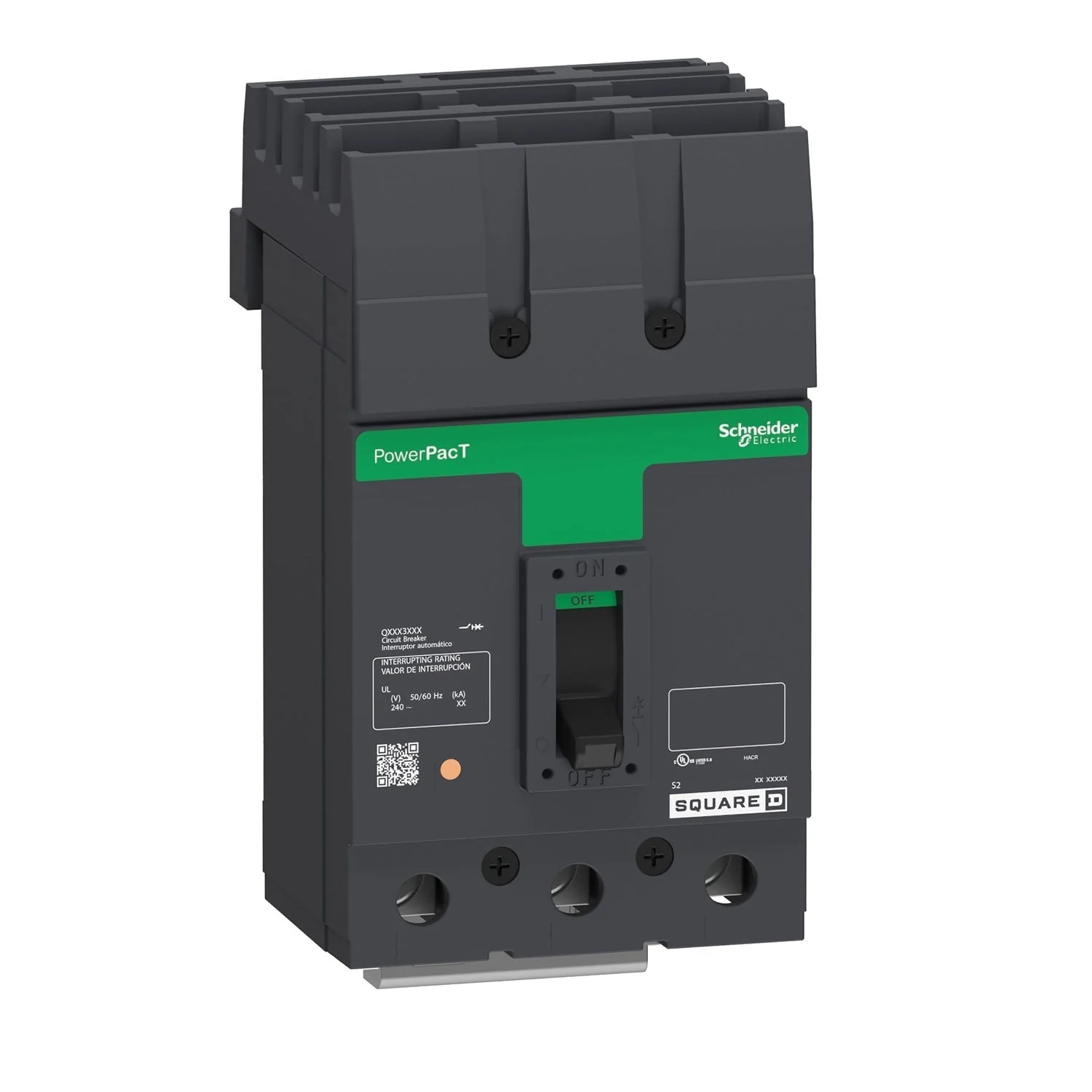

QDA32175 - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - QDA32175 - Square D I-Line Circuit Breaker
-
Part Number:
QDA32175 -
Manufacturer:
-
Family:
I-Line -
Pole:
3 -
Amp
175 -
Volt:
240 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
QDA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
25kA@240V
Dimensions
-
Dimensions (HxWxD):
6.47" x 4.5" x 3.93"
-
Weight:
4.9 lbs
Standards
Additional Details
-
Frame Type:
Q-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
175 Amp -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code:
D -
Electrical Connection:
I-Line connection line/Lugs load -
Magnetic Hold Current:
1200 Amp -
Continuous Current Rating:
80% -
Control Type:
Operating handle
Product Description - QDA32175 - Square D I-Line Circuit Breaker
Square D, I-Line, type QDA, 3P, ABC phase connection, 3PH, 175A, 240V, 25kA@240V, UL listed, standard interrupting capacity, i-line style plug-in, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, thermal magnetic, molded case circuit breakers.
