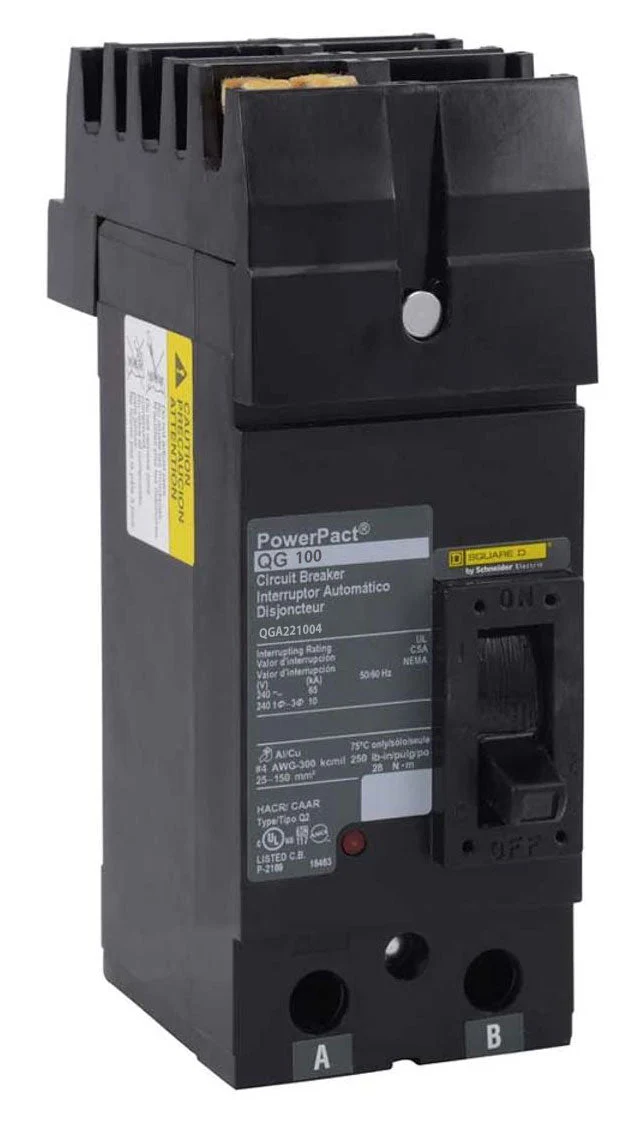

QGA221004 - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - QGA221004 - Square D I-Line Circuit Breaker
-
Part Number:
QGA221004 -
Manufacturer:
-
Family:
I-Line -
Pole:
2 -
Amp
100 -
Volt:
240 -
Phase:
1
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
QGA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@240V
Dimensions
-
Dimensions (HxWxD):
4.49" x 7.72" x 12.52"
-
Weight:
4.9 lbs
Standards
Additional Details
-
Frame Type:
Q-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
100 Amp -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code:
G -
Electrical Connection:
TI-Line connection line/Lugs load -
Magnetic Hold Current:
1200 Amp -
Continuous Current Rating:
80% -
Control Type:
Operating handle
Product Description - QGA221004 - Square D I-Line Circuit Breaker
Square D, I-Line, type QGA, 2P, B & C phase connection, 1PH, 100A, 240V, 65kA@240V, UL listed, high interrupting capacity, i-line style plug-in, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, thermal magnetic.
Documentation
Select Condition
From $189.90
Original: $632.99
-70%QGA221004 - Square D - Molded Case Circuit Breakerā
$632.99
$189.90Product Information
