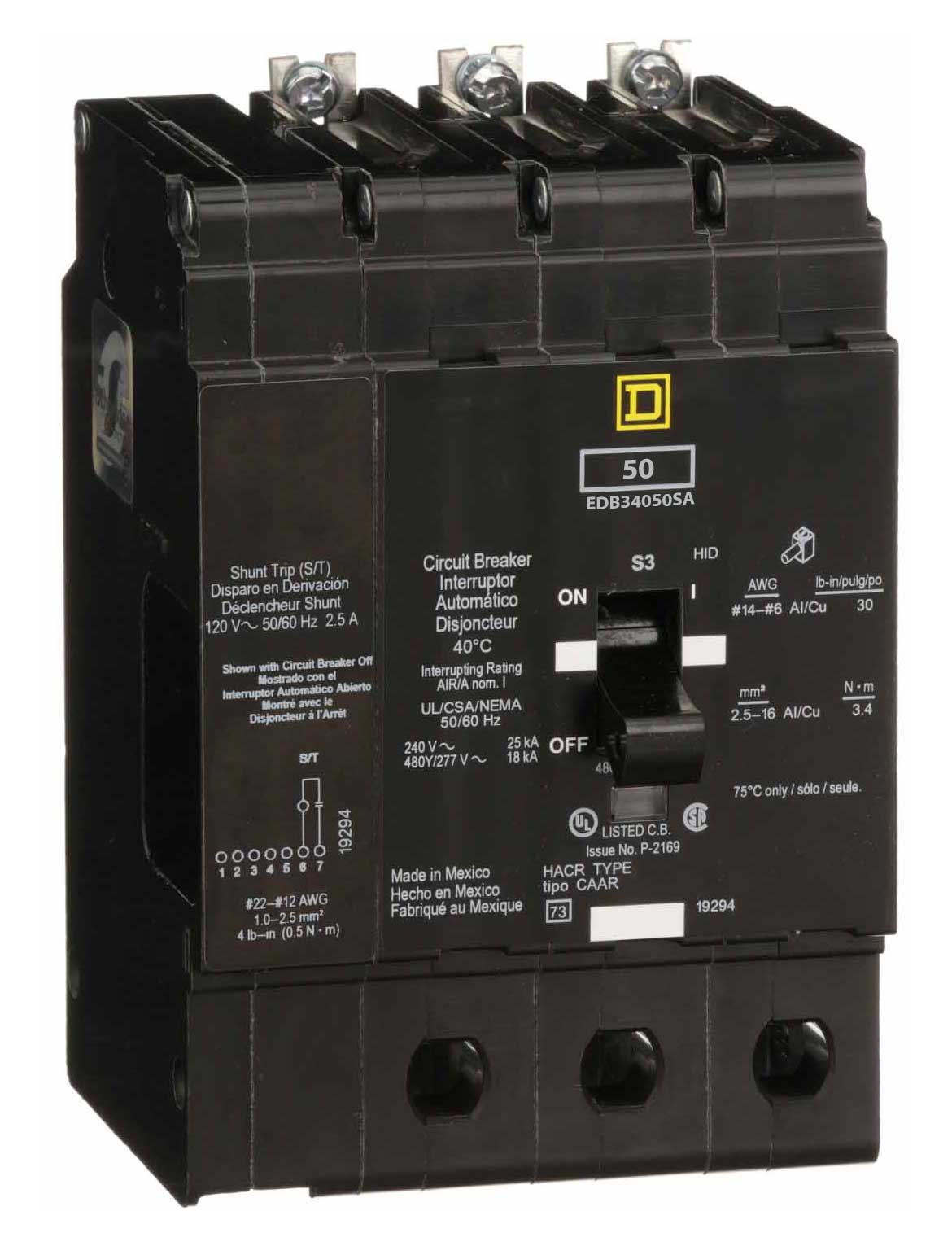

EDB34050SA - Square D - Molded Case Circuit Breakers
Overview
Product Specifications - EDB34050SA - Square D Molded Case Circuit Breakers
-
Part Number:
EDB34050SA -
Manufacturer:
Schneider Electric / Square D -
Family:
EDB Series -
Pole:
3 -
Amp
50 -
Volt:
480 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
EDB -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
18kA@480V
Dimensions
-
Dimensions (HxWxD):
5.66" x 3.92" x 4.05"
-
Weight:
4 lbs
Standards
Additional Details
-
Protection Type:
Short-Circuit / Overload -
Module Type:
E-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
50 Amp -
Maximum Operating Voltage:
480Y/277 V AC -
Mounting Mode:
Bolt-on
-
Breaking Capacity Code
D -
Electrical Connection:
Lugs aluminium -
AWG Gauge:
AWG 12...AWG 2/0 aluminium / AWG 14...AWG 2/0 copper
Product Description - EDB34050SA - Square D Molded Case Circuit Breakers
Square D / Schneider Electric, EDB Series, type EDB, 3P, 3PH, 50A, 18kA@480V, complete with 120V shunt trip, standard interrupting capacity, bolt-on, thermal magnetic
