FAL3610016M - Square D - Molded Case Circuit Breakers
Overview
Product Specifications - FAL3610016M - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
FAL3610016M -
Manufacturer:
-
Family:
FAL Series -
Pole:
3 -
Amp
100 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
F Frame -
Functions:
I - Instantaneous -
Protection:
Magnetic Only -
AIC Ratings:
18kA@480V
Dimensions
-
Dimensions (HxWxD):
4.13 x 4.5 x 6 -
Weight:
5 lb
Standards
Product Description - FAL3610016M - Schneider Electric Molded Case Circuit Breakers

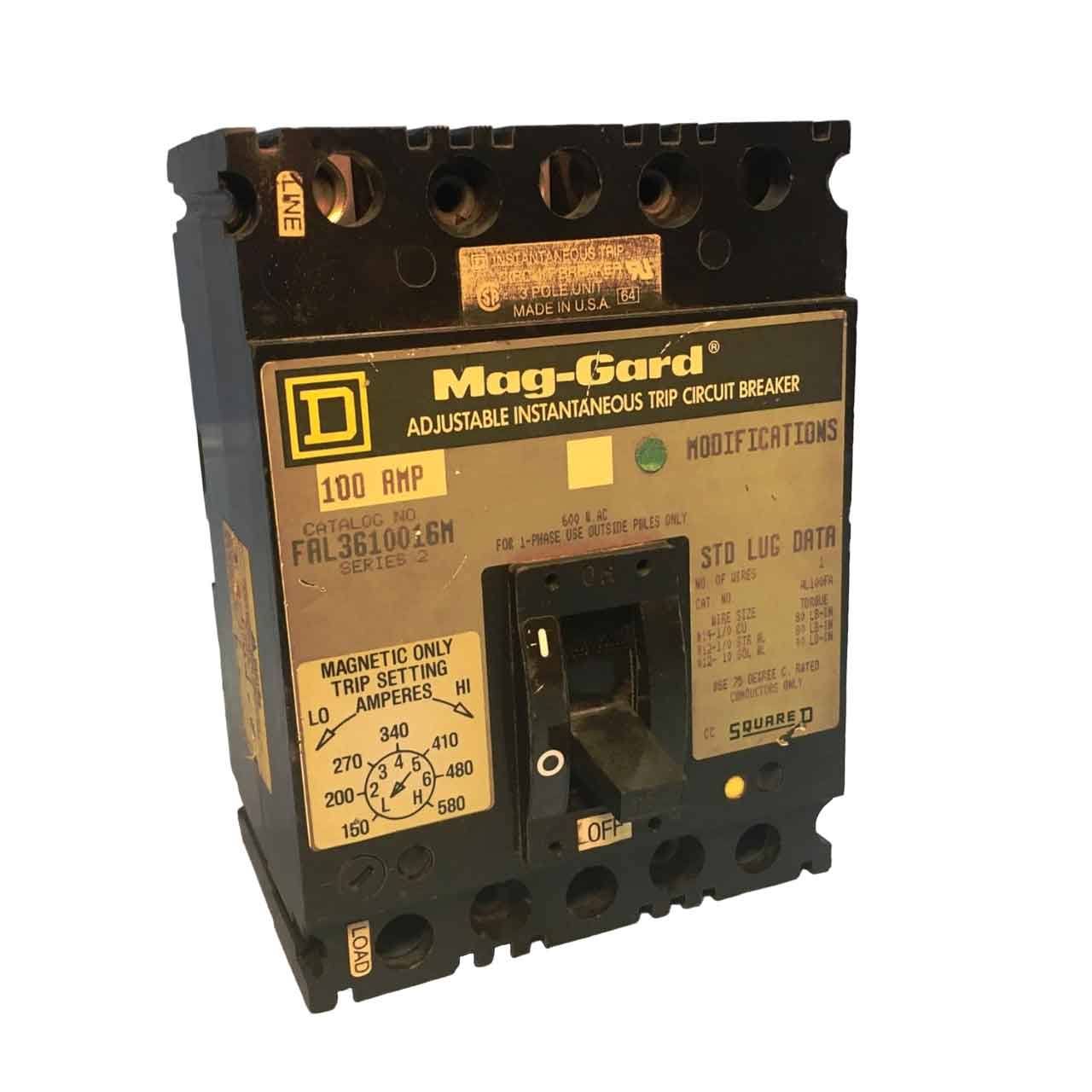

Introducing the Square D FAL3610016M, a resilient molded case circuit breaker belonging to the FAL Series. This circuit breaker is classified as type FAL, featuring a 3-phase (3P) configuration, a rating of 100A, and a voltage capacity of 600V. With an impressive 18kA@480V interrupting capacity, it is UL listed and adheres to standard interrupting specifications. Notable features include Feed-Thru capability, I - Instantaneous protection, and line & load side lug terminals. Additionally, it is equipped with Mag-Gard MCP, motor circuit protectors, and boasts a magnetic range of 150-580A, making it a Magnetic-Only circuit breaker.
