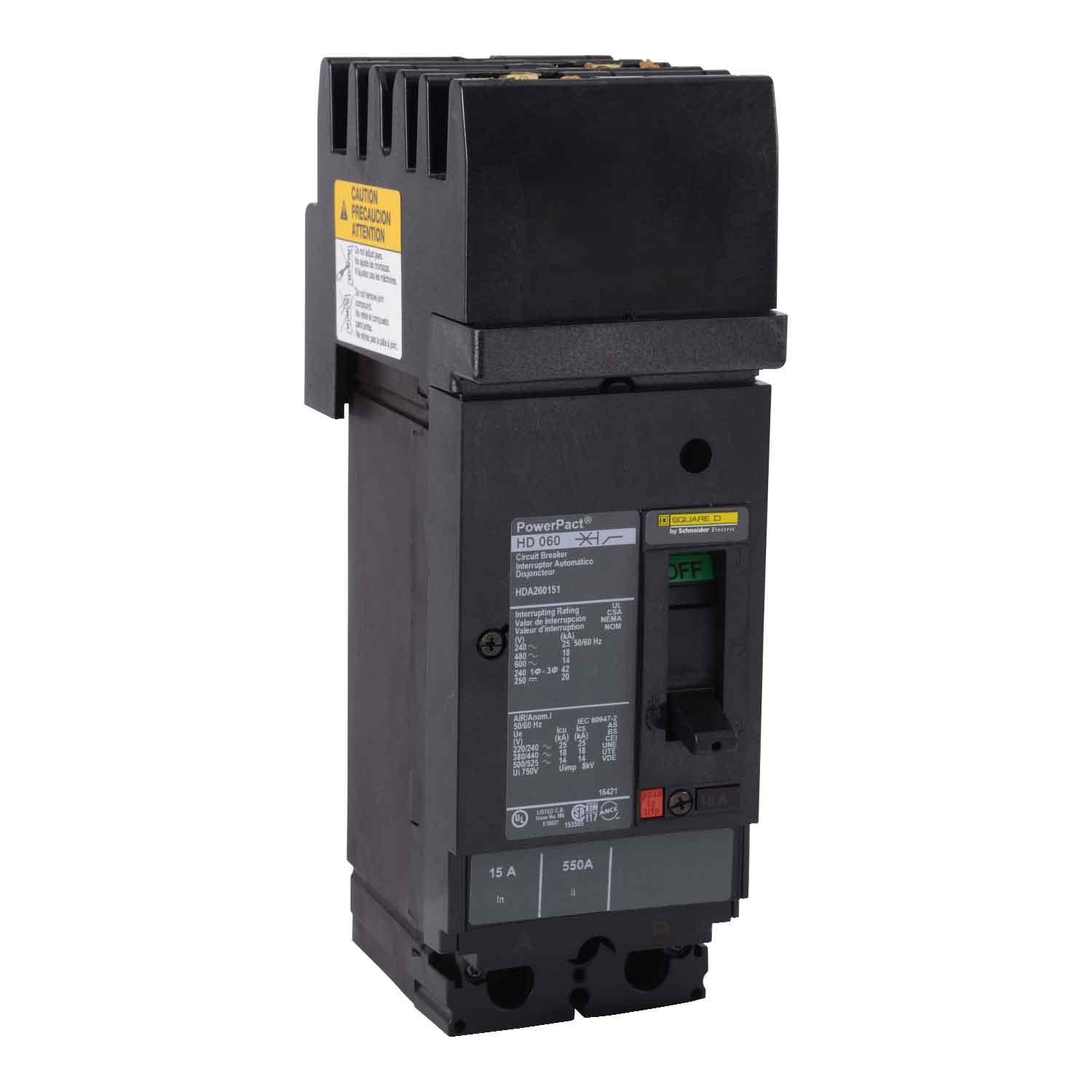

HDA261104 - Square D - Molded Case Circuit Breakers
Overview
Product Specifications - HDA261104 - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
HDA261104 -
Manufacturer:
-
Family:
Powerpact -
Pole:
2 -
Amp
110 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
H Frame -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
18kA@480V
Dimensions
-
Dimensions (HxWxD):
3.39 x 4.09 x 6.42 -
Weight:
4.85 lb
Standards
Product Description - HDA261104 - Schneider Electric Molded Case Circuit Breakers
The HDA261104 by Square D is a 1-phase (1PH) molded case circuit breaker, type HDA, configured for B & C phase connection. It features a robust 110A rating at 600V with a standard interrupting capacity of 18kA@480V. UL listed and suitable for reverse fed applications, this Thermal Magnetic circuit breaker comes complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, ensuring secure electrical protection.
Original: $737.99
-70%$737.99
$221.40Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Overview
Product Specifications - HDA261104 - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
HDA261104 -
Manufacturer:
-
Family:
Powerpact -
Pole:
2 -
Amp
110 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
H Frame -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
18kA@480V
Dimensions
-
Dimensions (HxWxD):
3.39 x 4.09 x 6.42 -
Weight:
4.85 lb
Standards
Product Description - HDA261104 - Schneider Electric Molded Case Circuit Breakers
The HDA261104 by Square D is a 1-phase (1PH) molded case circuit breaker, type HDA, configured for B & C phase connection. It features a robust 110A rating at 600V with a standard interrupting capacity of 18kA@480V. UL listed and suitable for reverse fed applications, this Thermal Magnetic circuit breaker comes complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, ensuring secure electrical protection.
