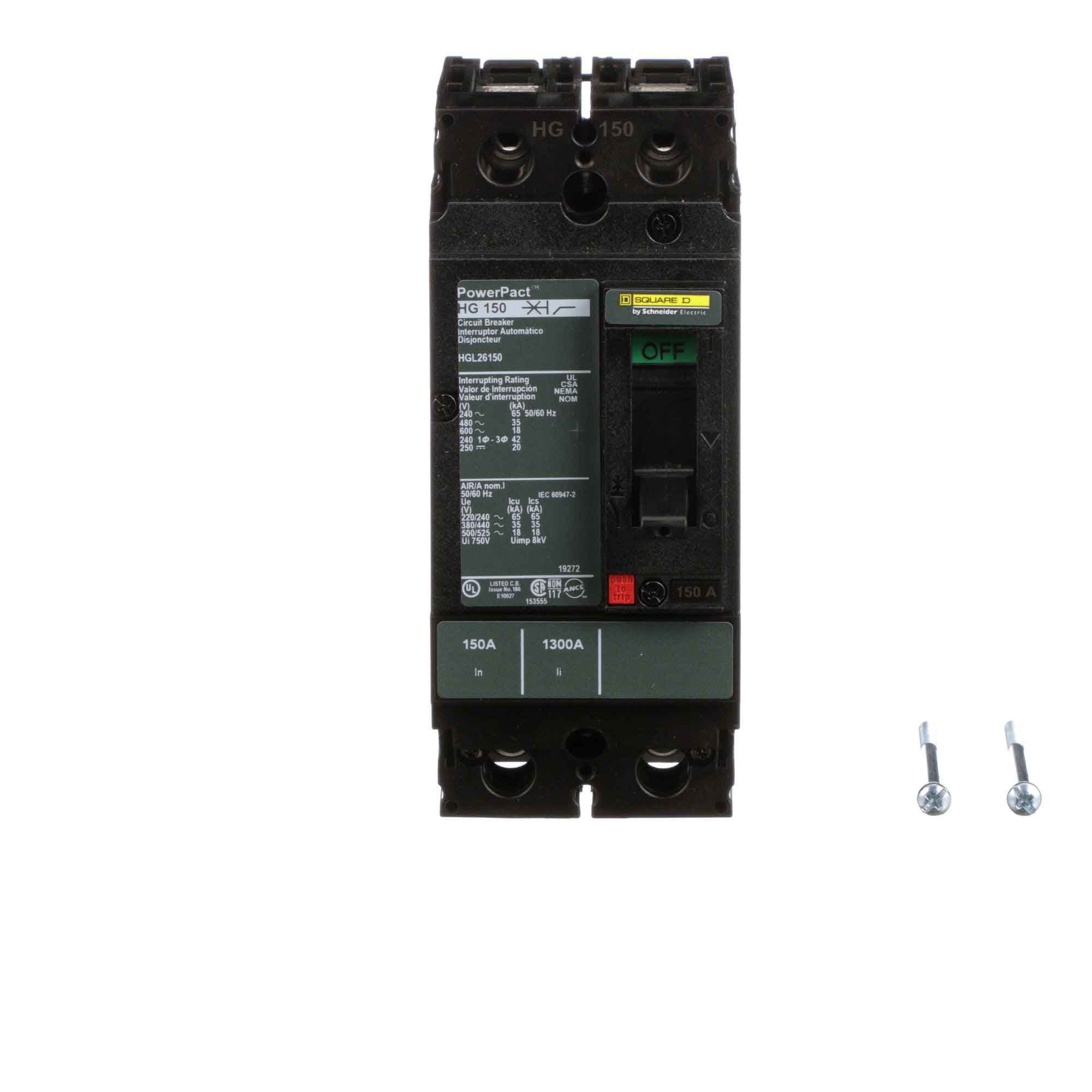

HGL26150 - Square D - Molded Case Circuit Breakers
Overview
Product Specifications - HGL26150 - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
HGL26150 -
Manufacturer:
-
Family:
Powerpact -
Pole:
2 -
Amp
150 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
Feed-Thru -
Type:
H Frame -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
3.39 x 4.09 x 6.42 -
Weight:
4.85 lb
Standards
Product Description - HGL26150 - Schneider Electric Molded Case Circuit Breakers
Square-D, Schneider Electric, Powerpact, type HGL, 2P, 1PH, 150A, 600V, 35kA@480V, high interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, including LI (Long-Time) and Instantaneous trip functions, and line & load side lug terminals. It is a Thermal Magnetic molded case circuit breaker.
