HLA36150U43X - Square D - Molded Case Circuit Breakers
Overview
Product Specifications - HLA36150U43X - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
HLA36150U43X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
150 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
H Frame -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
100kA@480V
Dimensions
-
Dimensions (HxWxD):
3.39 x 4.09 x 6.42 -
Weight:
4.85 lb
Standards
Product Description - HLA36150U43X - Schneider Electric Molded Case Circuit Breakers

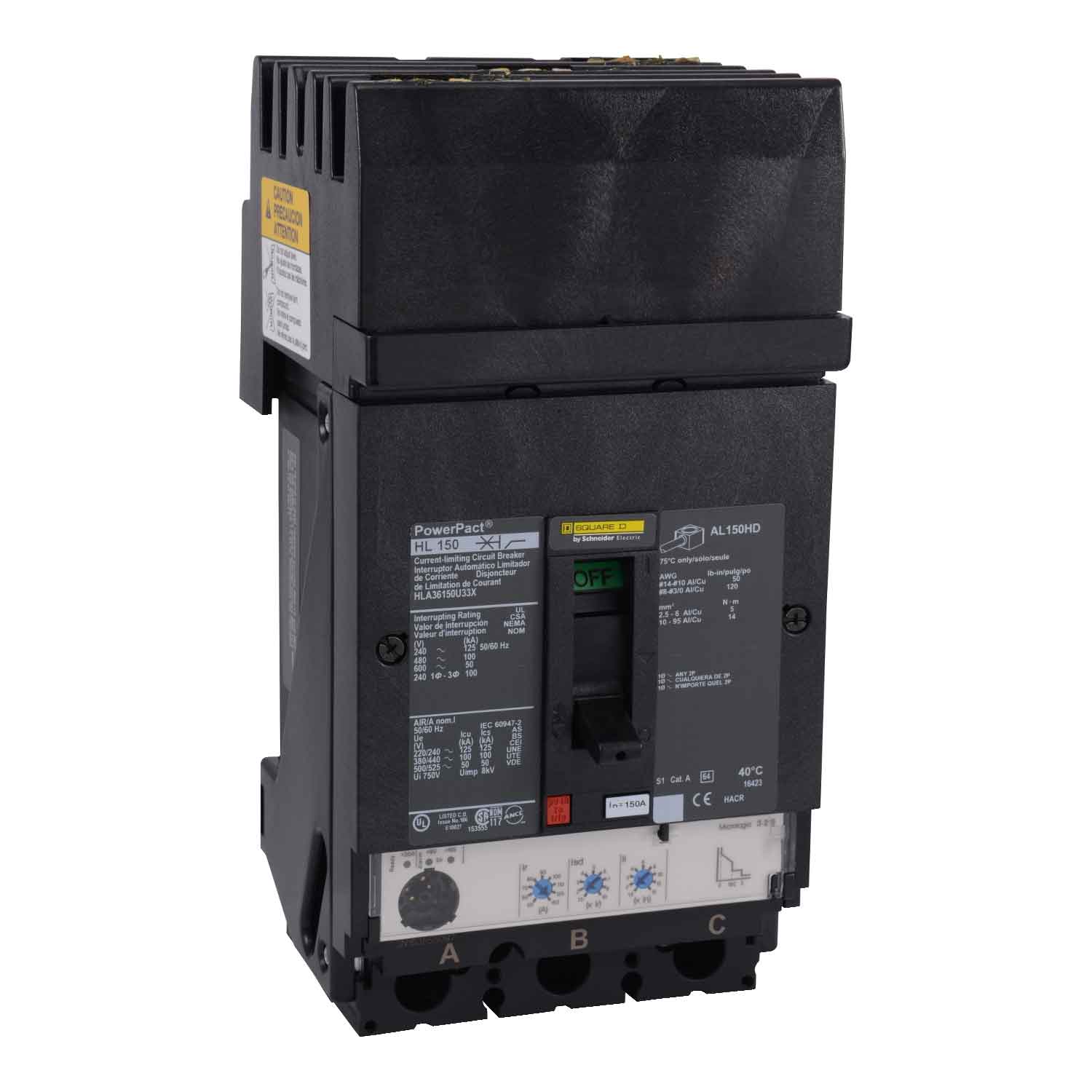

Square D's Powerpact HLA36150U43X is a high-capacity molded case circuit breaker designed for three-phase applications with an ABC phase connection. Operating at 150A and 600V, it ensures robust protection with an interrupting capacity of 100kA at 480V. The I-Line Style Plug-In design, UL listing, and suitability for reverse connection enhance its versatility. The micrologic ammeter trip unit provides non-interchangeable trip settings, including LSI (Long-Time, Short-Time, and Instantaneous) functions. Solid State electronic technology ensures precise and reliable operation.
