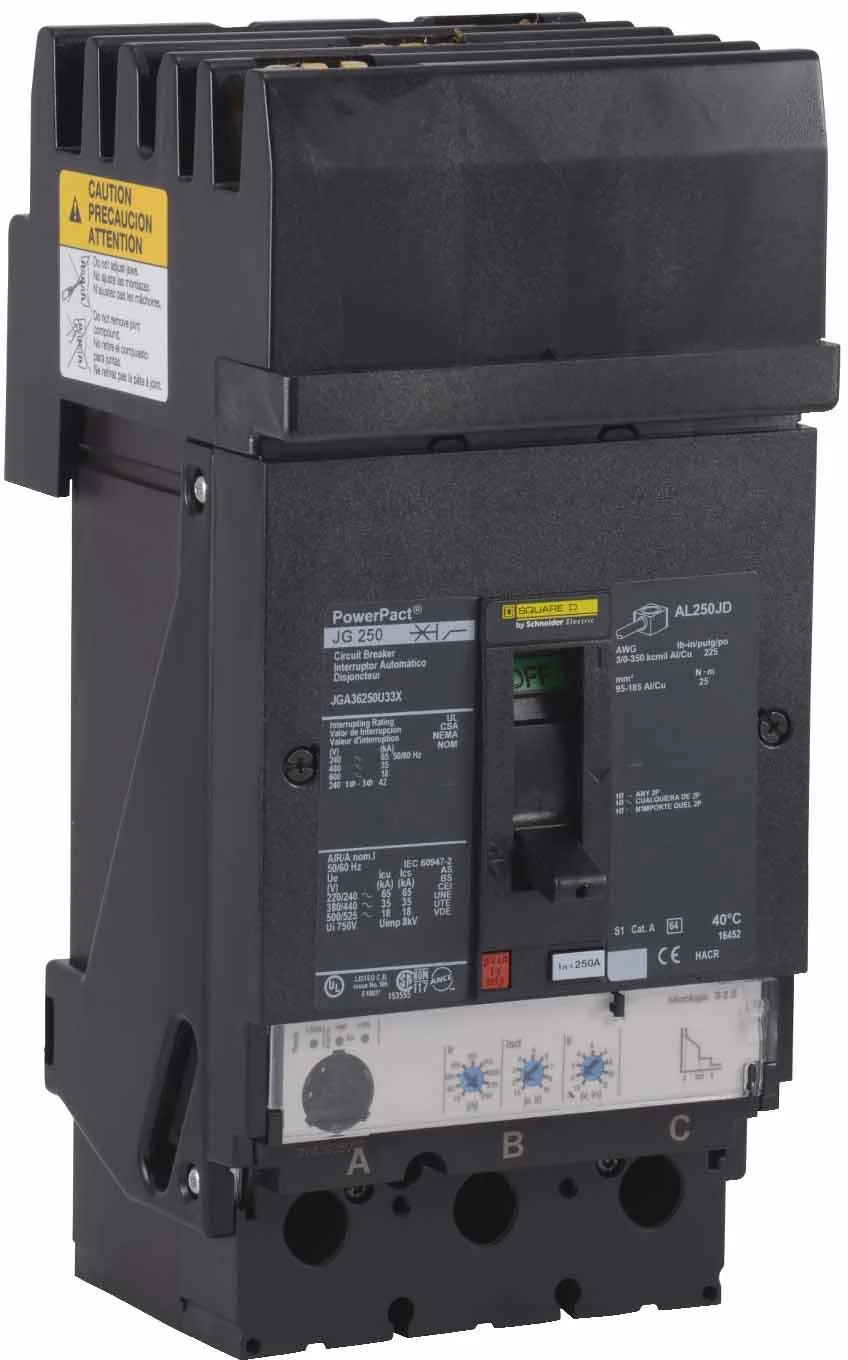

JGA36250U33X - Square D - Molded Case Circuit Breakers
Overview
Product Specifications - JGA36250U33X - Square D Molded Case Circuit Breakers
-
Part Number:
JGA36250U33X -
Manufacturer:
Schneider Electric / Square D -
Family:
Powerpact -
Pole:
3 -
Amp
250 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
JGA -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
7.52" x 4.09" x 3.39"
-
Weight:
5.29 lbs
Standards
Additional Details
-
Protection Type:
Short-Circuit / Overload -
Trip Unit Technology:
Electronic, standard, MicroLogic 3.2 S, LSI -
Line Rated Current:
250 Amp -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code
G -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Product Description - JGA36250U33X - Square D Molded Case Circuit Breakers
Square D, Powerpact, 3P, 3PH, 250A, 600V, 35kA@480V, high interrupting capacity, i-line style plug-in, suitable for reverse connection, can be used for 2P applications, complete with micrologic standard 3.2S non-interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, solid state electronic, Molded Case Circuit Breaker
Documentation
Original: $1,799.99
-70%$1,799.99
$540.00Product Information
