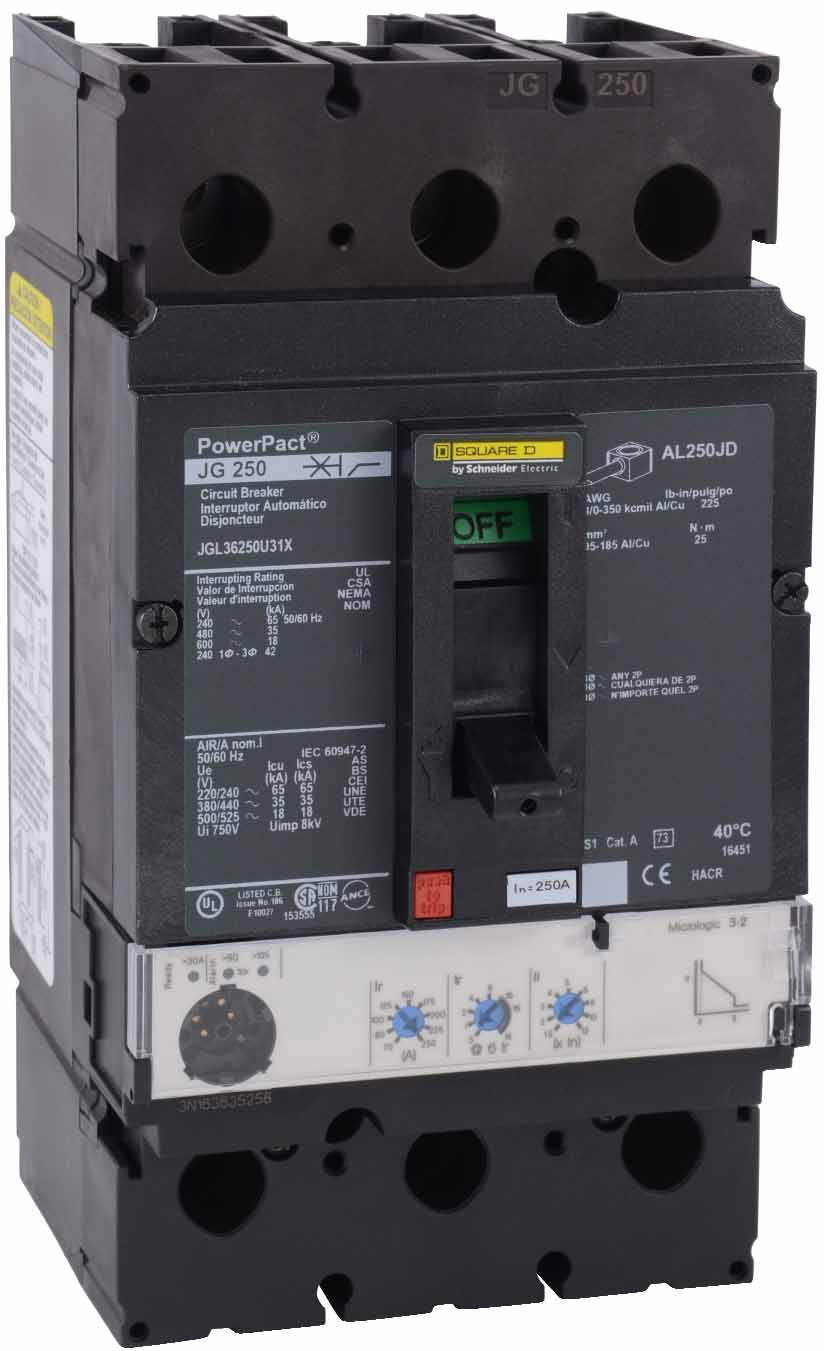

JGL36250U31X - Square D - Molded Case Circuit Breakers
Overview
Product Specifications - JGL36250U31X - Square D Molded Case Circuit Breakers
-
Part Number:
JGL36250U31X -
Manufacturer:
Schneider Electric / Square D -
Family:
Powerpact -
Pole:
3 -
Amp
250 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
JGL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
35kA@480V

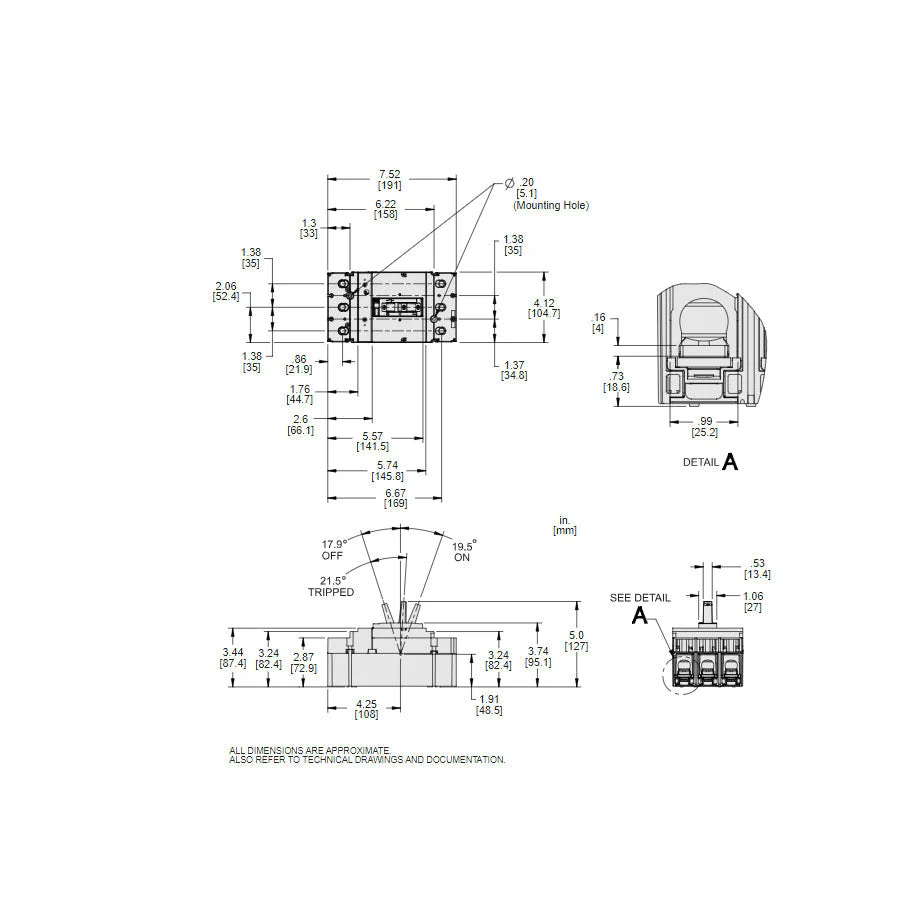

Dimensions
-
Dimensions (HxWxD):
7.52" x 4.09" x 3.39"
-
Weight:
5.29 lbs
Standards
Additional Details
-
Protection Type:
Short-Circuit / Overload -
Trip Unit Technology:
Electronic, standard, MicroLogic 3.2, LI -
Line Rated Current:
250 Amp -
Mounting Mode:
Unit mount lug
-
Breaking Capacity Code
G -
Electrical Connection:
Lugs line / Lugs load -
Continuous Current Rating
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Product Description - JGL36250U31X - Square D Molded Case Circuit Breakers
Schneider Electric / Square D, Powerpact, type JGL, 3P, 3PH, 250A, 600V, feed-thru, UL listed, suitable for reverse fed applications, can be used for 2P applications, complete with micrologic standard non-interchangeable trip, line & load side lug terminals, solid state
Documentation
Select Condition
From $444.00
Original: $1,479.99
-70%JGL36250U31X - Square D - Molded Case Circuit Breakers—
$1,479.99
$444.00Product Information
