JJL36250U43X - Square D - Molded Case Circuit Breakers
Overview
Product Specifications - JJL36250U43X - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
JJL36250U43X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
250 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
J Frame -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
3.39 x 4.09 x 7.52 -
Weight:
5.29 lb
Standards
Product Description - JJL36250U43X - Schneider Electric Molded Case Circuit Breakers

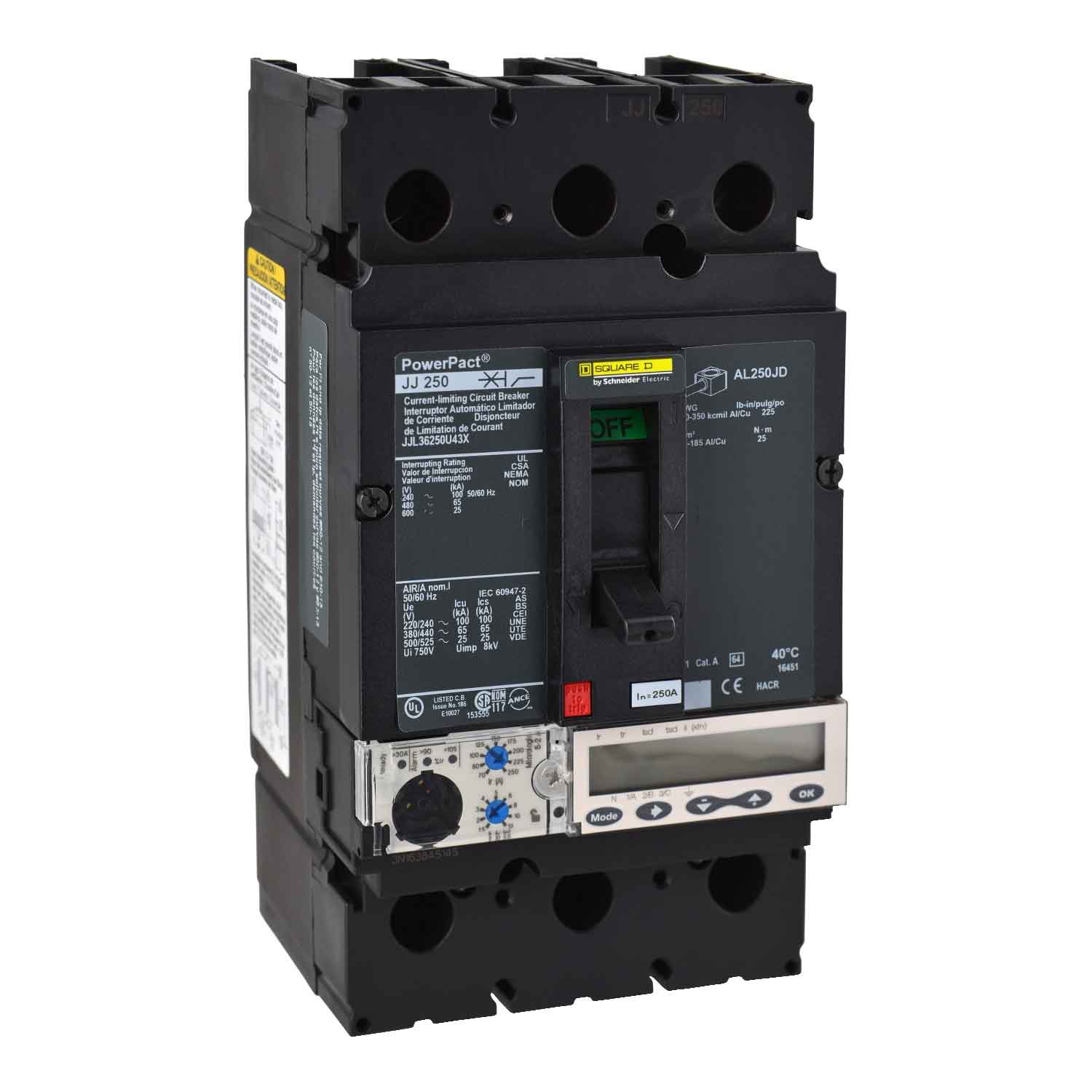

Square D, Schneider Electric, Powerpact type JJL, 3P, 3PH, 250A, 600V, 65kA@480V, current limiting, Feed-Thru, UL listed, suitable for reverse fed applications. It features a micrologic ammeter non-interchangeable trip with LSI (Long-Time, Short-Time, and Instantaneous) trip functions and line & load side lug terminals. The breaker incorporates Solid State technology and comes in a molded case.
Original: $3,081.99
-70%$3,081.99
$924.60Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Overview
Product Specifications - JJL36250U43X - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
JJL36250U43X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
250 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
J Frame -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
3.39 x 4.09 x 7.52 -
Weight:
5.29 lb
Standards
Product Description - JJL36250U43X - Schneider Electric Molded Case Circuit Breakers
Square D, Schneider Electric, Powerpact type JJL, 3P, 3PH, 250A, 600V, 65kA@480V, current limiting, Feed-Thru, UL listed, suitable for reverse fed applications. It features a micrologic ammeter non-interchangeable trip with LSI (Long-Time, Short-Time, and Instantaneous) trip functions and line & load side lug terminals. The breaker incorporates Solid State technology and comes in a molded case.
