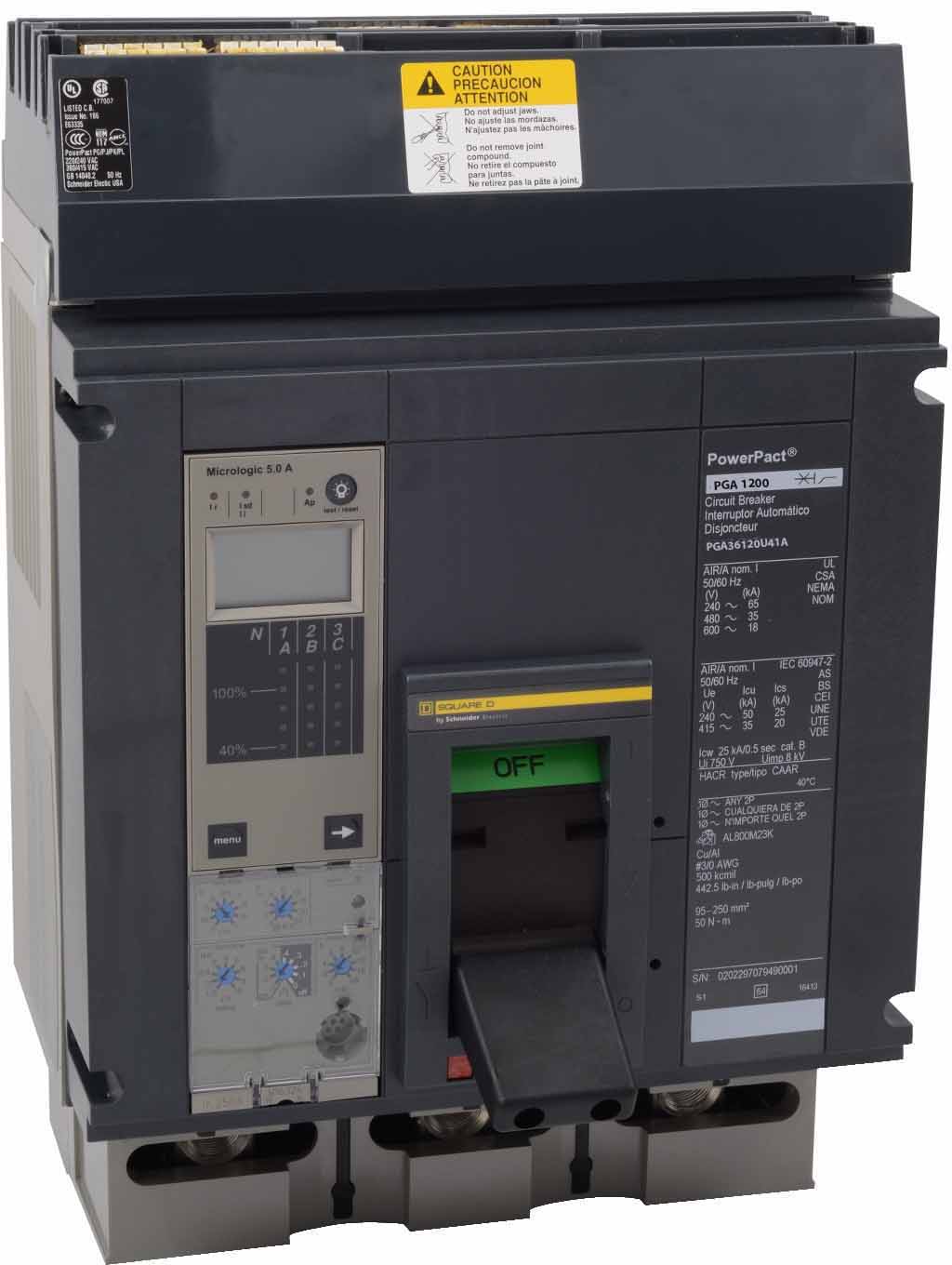

PGA36120U41A - Square D - Molded Case Circuit Breakers

PGA36120U41A - Square D - Molded Case Circuit Breakers

Overview

Product Specifications - PGA36120U41A - Square D Molded Case Circuit Breakers

  • Category:

    Molded Case / 3-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    PGA

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Solid State

  • AIC Ratings:

    35kA@480V

Dimensions

  • Dimensions (HxWxD):

    16.16" x 8.27" x 8.05"

  • Weight:

    32 lbs

Standards

CSA Approved logo

Additional Details

  • Trip Unit Technology:

    Electronic, ammeter, MicroLogic 3.0 A, LI

  • Line Rated Current:

    1200 Amp

  • Mounting Mode:

    I-Line bracket

  • Breaking Capacity Code

    G

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Continuous Current Rating

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    4 x AWG 3/0...500 kcmil aluminium/copper

Product Description - PGA36120U41A - Square D Molded Case Circuit Breakers

Schneider Electric / Square D, 3P, 3PH, 1200A, 600V, 35kA@480V, UL listed, standard interrupting capacity, i-line style plug-in, complete with micrologic interchangeable ammeter 3.0A trip, LI - Long-Time and Instantaneous trip functions, Molded Case Circuit Breaker


Select Condition
From $1,512.60

Original: $5,041.99

-70%
PGA36120U41A - Square D - Molded Case Circuit Breakersā€”

$5,041.99

$1,512.60
