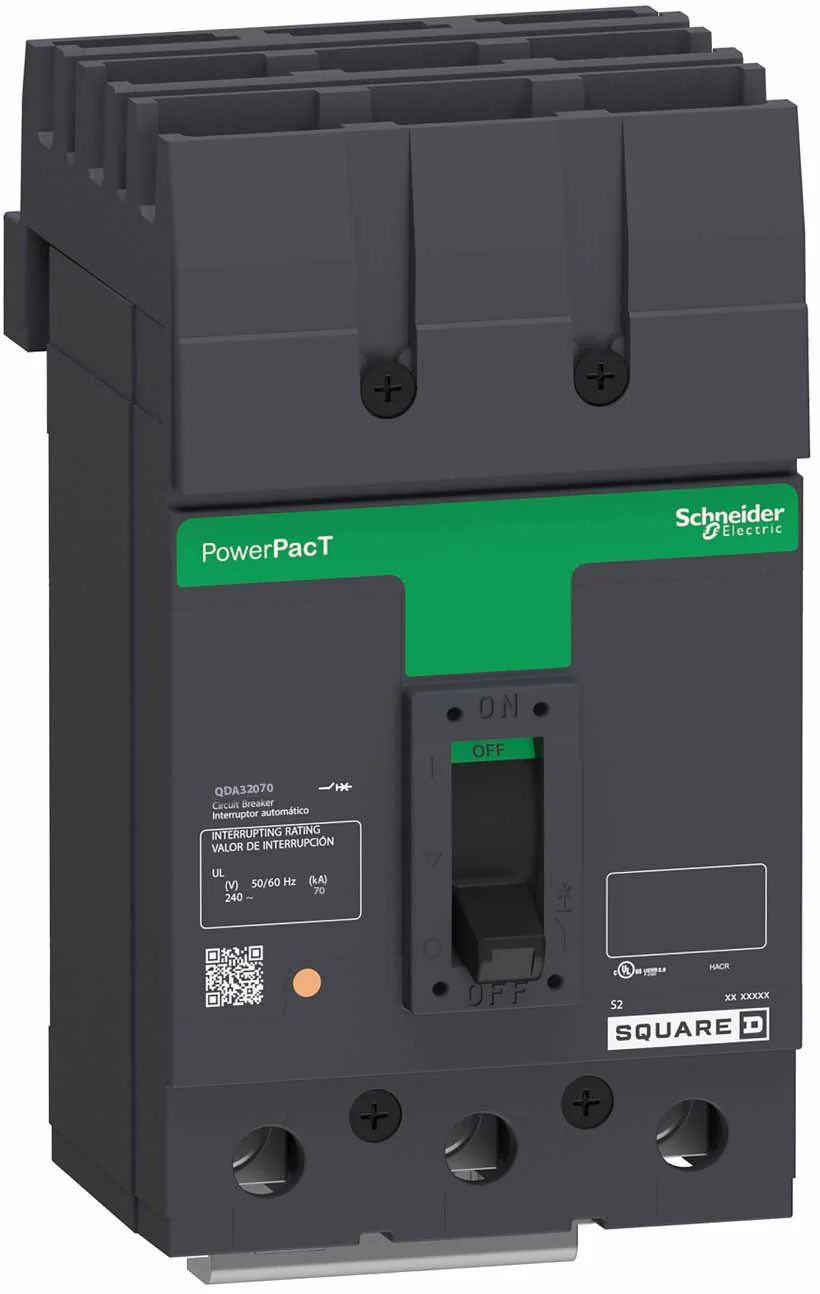

QDA32070 - Square D - Molded Case Circuit Breakers
Overview
Product Specifications - QDA32070 - Square D Molded Case Circuit Breakers
-
Part Number:
QDA32070 -
Manufacturer:
Schneider Electric / Square D -
Family:
I-Line -
Pole:
3 -
Amp
70 -
Volt:
240 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
QDA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
25kA@240V
Dimensions
-
Dimensions (HxWxD):
6.47" x 4.5" x 3.93"
-
Weight:
7 lbs
Standards
Additional Details
-
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
70 Amp -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code
D -
Electrical Connection:
I-Line connection line / Lugs load -
Magnetic Hold Current:
1000 Amp -
Continuous Current Rating
80% -
Control Type:
Operating handle
Product Description - QDA32070 - Square D Molded Case Circuit Breakers
Square D, 3P, 3PH, 70A, 240V, 25kA@240V, standard interrupting capacity, i-line style plug-in, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, thermal magnetic, Molded Case Circuit Breaker
