SSP02EMA16 - Square D - Molded Case Circuit Breakers
Overview
Product Specifications - SSP02EMA16 - Square D Molded Case Circuit Breakers
-
Part Number:
SSP02EMA16 -
Manufacturer:
-
Category:
-
Type:
SSP
Dimensions
-
Dimensions (HxWxD):
11.0 x 9.98 x 5.31 -
Weight:
15.77 lbs
Standards
Product Description - SSP02EMA16 - Square D Molded Case Circuit Breakers

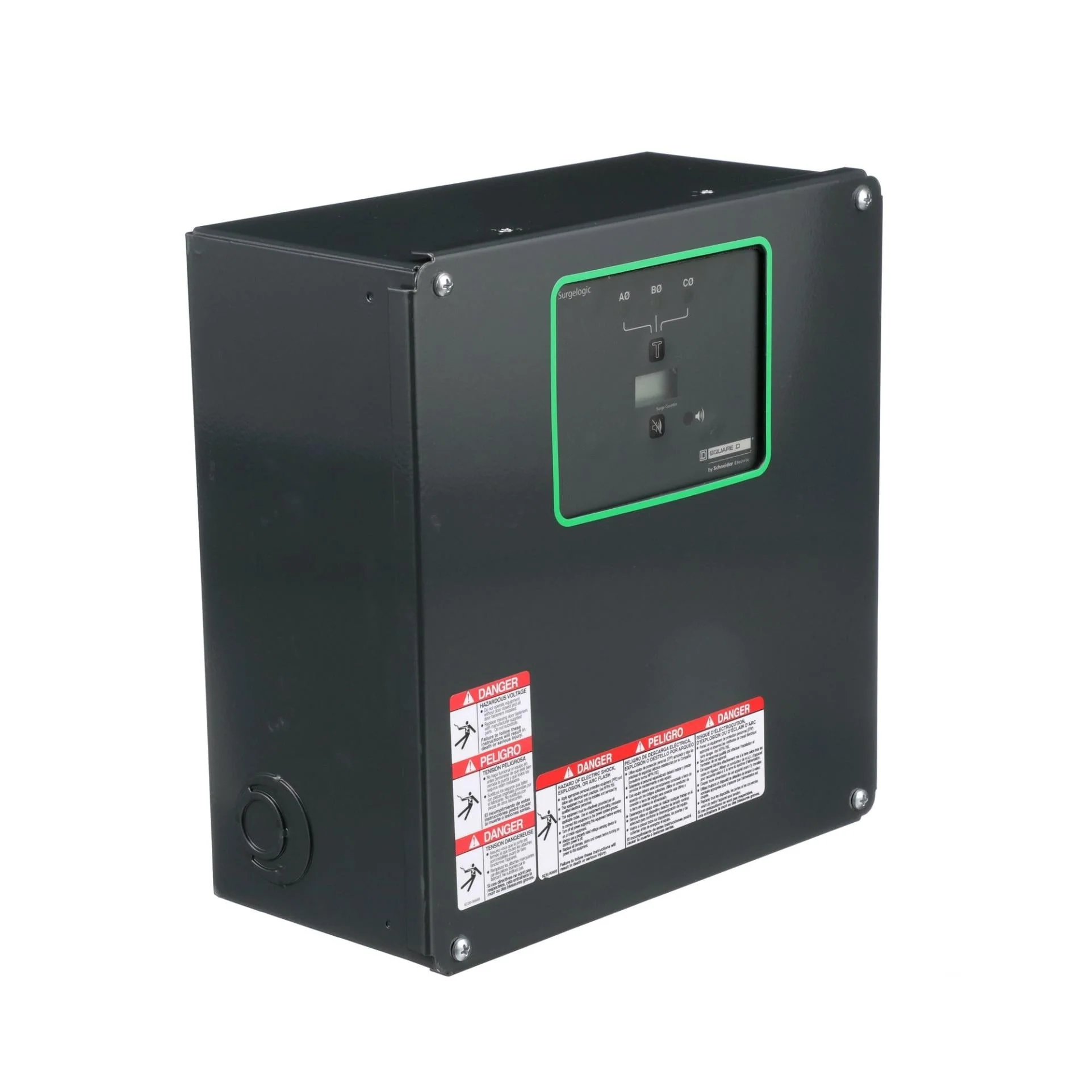

Surgelogicā¢ Type EMA Series surge protective devices deliver specification grade performance for service entrance or critical branch panel applications. These multi-phase surge suppression systems provide transient suppression, noise filtration, enhanced EMI/RFI filtering with sine wave tracking in a durable modular package. They provide better performance with a diagnostic interface with push to test switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. This surge protection device is 3 phase, 3-wire + ground, 208Y/120 V, 160 kA surge current per phase, and short circuit current rating of 200 kA. It has 10 year product warranty and 11 modes of protection.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Overview
Product Specifications - SSP02EMA16 - Square D Molded Case Circuit Breakers
-
Part Number:
SSP02EMA16 -
Manufacturer:
-
Category:
-
Type:
SSP
Dimensions
-
Dimensions (HxWxD):
11.0 x 9.98 x 5.31 -
Weight:
15.77 lbs
Standards
Product Description - SSP02EMA16 - Square D Molded Case Circuit Breakers
Surgelogicā¢ Type EMA Series surge protective devices deliver specification grade performance for service entrance or critical branch panel applications. These multi-phase surge suppression systems provide transient suppression, noise filtration, enhanced EMI/RFI filtering with sine wave tracking in a durable modular package. They provide better performance with a diagnostic interface with push to test switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. This surge protection device is 3 phase, 3-wire + ground, 208Y/120 V, 160 kA surge current per phase, and short circuit current rating of 200 kA. It has 10 year product warranty and 11 modes of protection.
